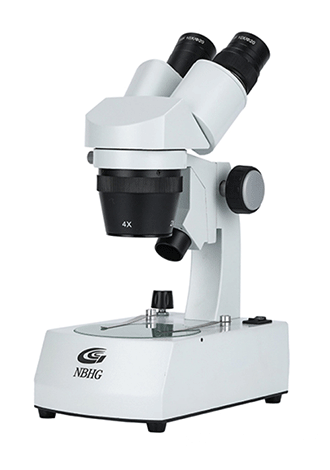

WF10x/20mm Stereo Microscope Soldering Dental Microscope for Precision Inspection and Dental Applications
When I work with customers looking for a stereo microscope, I usually start with one simple question: What are you actually going to look at under the microscope? That question sounds basic, but it can save a lot of trouble later.
A Microscope Used for soldering is not necessarily configured in the same way as one used for dental work. An electronics technician needs enough room for a soldering iron, tweezers, and a circuit board. A dental professional needs a clear view, comfortable binocular observation, and a working setup that does not force an awkward posture. A training laboratory may care more about simple operation and flexible observation.
Our WF10x/20mm Stereo Microscope Soldering Dental Microscope is positioned around this practical idea. It combines binocular stereo observation with a WF10x/20mm eyepiece configuration and can be used for detailed work involving small components, surfaces, structures, and precision parts. Depending on the complete optical configuration, it can support applications such as soldering inspection, electronics repair, dental laboratory work, education, Jewelry Inspection, precision machinery, medical equipment inspection, and quality control.
At Ningbo Huaguang Precision Instrument Co., Ltd., we manufacture educational microscopes, Industrial Inspection microscopes, professional jewelry inspection microscopes, optical components, and precision injection-molded products. Our products are exported to more than 20 countries and regions, including America, Brazil, Germany, the Netherlands, and Japan. Our company has an ISO 9001 quality management system certification, and our supplied company information states that our products have CE and RoHS certification.
What I care about most is not making a microscope specification sheet look impressive. I care about whether the instrument works well when someone is actually sitting in front of it for several hours, moving a small part, checking a solder joint, inspecting a surface, or trying to see a tiny dental detail.
The name WF10x/20mm Stereo Microscope Soldering Dental Microscope contains several useful clues about the product.
“Stereo Microscope” tells us that the instrument is designed for three-dimensional observation. “Binocular” means the user observes through two optical paths. “Soldering” points toward electronics assembly, repair, rework, and other tasks where a small object needs to be observed while tools are used. “Dental Microscope” indicates another application direction where detailed visual inspection and comfortable binocular viewing are important.
The WF10x/20mm part needs a little explanation because it is easy to misunderstand. In microscope terminology, “10x/20mm” commonly refers to a 10× eyepiece with a field number of 20 mm, rather than automatically meaning that the complete microscope provides 10× total magnification. Evident Scientific explains that the field number is the diameter of the eyepiece's intermediate image in millimeters, while actual field of view depends on the objective magnification. :contentReference[oaicite:0]{index=0}
That distinction is important when comparing microscopes. If an eyepiece is marked 10× and the objective is also 10×, the total magnification would be 100× in a conventional compound optical calculation. The actual arrangement in a stereo microscope depends on its specific optical design, so buyers should always confirm the complete configuration rather than reading one number from the product name.
| Term | Practical Meaning | Why It Matters |
|---|---|---|
| WF10x | Wide-field 10× eyepiece designation | Provides binocular viewing at the stated eyepiece magnification |
| 20mm | Field number of the eyepiece | Helps indicate the viewing field available through the eyepiece |
| Stereo | Three-dimensional observation | Useful for solid objects, components, surfaces, and detailed work |
| Binocular | Two-eye observation | Supports comfortable viewing during repeated inspection |
| Soldering | Electronics assembly and rework application | Allows small solder joints and components to be examined closely |
| Dental | Dental and laboratory inspection application | Supports detailed viewing of small structures and surfaces |
The table describes general optical terminology and application meaning. The final performance depends on the complete microscope configuration, objective, stand, illumination, accessories, and working conditions.
For me, this is the key point: a microscope is a system, not just a number printed on an eyepiece.
A stereo microscope creates two optical views of the observed object. These views reach the user's two eyes through the binocular head, and the brain combines the information to produce a useful sense of depth.
That depth information is one of the biggest reasons stereo microscopes are popular for hands-on work. If I am looking at a circuit board, for example, I do not only want to know that a solder joint is there. I want to understand its shape, height, position, and relationship with nearby components.
The same idea applies to mechanical parts. A small gear, connector, spring, machined edge, or molded component may have several surfaces and different heights. A stereo microscope makes these details easier to understand than a flat image.
This is also why stereo microscopes are useful for soldering. When an operator is working under magnification, the microscope needs to provide more than magnification. The operator needs enough space to move tools and enough visual information to control those tools.
Leica Microsystems notes that stereo microscopes are useful for inspection and rework because they provide a 3D perspective and immediate depth perception. It also points out that working distance becomes important when tools need to access the sample under the objective. :contentReference[oaicite:1]{index=1}
Imagine an operator repairing a small circuit board. The board is placed below the microscope. The operator looks through the binocular head, adjusts focus, and uses a soldering iron or tweezers while watching the component through the optical system.
If the microscope is too close to the work surface, the tool can hit the objective. If the field of view is too narrow, finding the target becomes slower. If the image is unstable, the operator may have trouble controlling the tool.
That is why I consider working distance, field of view, focusing stability, illumination, and mechanical stability just as important as magnification when selecting a soldering microscope.
Dental microscopy is a more specialized field. Dental professionals may need to see very small structures clearly while maintaining a controlled working posture. The microscope configuration must therefore be matched to the procedure, working distance, viewing angle, illumination, and clinical setup.
Professional dental microscope systems often place strong emphasis on working distance and ergonomic viewing. For example, Leica describes dental microscope configurations with adjustable working distances and binocular systems designed to support different working positions. :contentReference[oaicite:2]{index=2}
Our product should therefore be understood according to its actual configuration and intended application. For clinical procedures, customers should confirm that the selected microscope configuration, accessories, documentation, and applicable regulatory requirements are appropriate for the intended medical use.
There are plenty of microscope specifications on the market. Some are useful. Some look impressive but do not necessarily solve the user's real problem. From my manufacturing perspective, I focus on the features that affect actual work.
Binocular viewing allows the user to observe with both eyes. This is useful for repeated inspection because the operator does not have to keep one eye closed or constantly switch between eyes.
For soldering, electronics repair, and laboratory work, this can make the observation process feel more natural. For dental applications, binocular viewing can also be part of a more ergonomic microscope setup.
Three-dimensional observation is particularly useful when the target has height or complicated surface structures. A circuit-board component, jewelry setting, mechanical part, or dental structure is not simply a flat picture.
The Leica guidance on stereo microscope selection also highlights depth perception, field of view, working distance, and depth of field as important factors when choosing a system for inspection. :contentReference[oaicite:3]{index=3}
The WF10x/20mm configuration provides a 10× eyepiece with a 20 mm field number in the terminology commonly used for microscope eyepieces. Evident explains that a larger field number allows more specimen area to be seen at the same eyepiece magnification. :contentReference[oaicite:4]{index=4}
This is useful when the operator needs to locate a feature without constantly moving the sample.

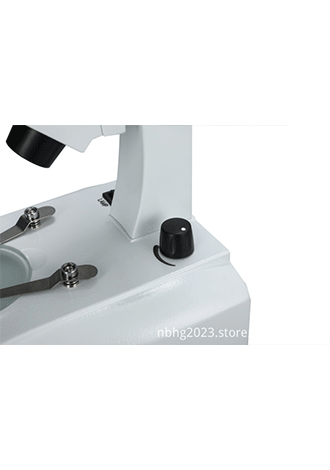

Focusing is one of those things people notice immediately when it is bad. A rough or loose focusing mechanism can make detailed work unnecessarily difficult.
We check focusing operation before shipment because the microscope should not become another problem on the workbench.
For soldering and repair work, space underneath the objective matters. The operator needs to bring tools close to the workpiece without hitting the microscope.
Industrial Stereo Microscope Manufacturers commonly provide longer working-distance options for this reason. Leica, for example, describes working distances of up to 122 mm on certain stereo microscope models and specifically connects that space with manual tasks such as soldering and rework. :contentReference[oaicite:5]{index=5}
A microscope may be optically good but still uncomfortable if the user has to bend the neck or constantly reposition the head. In long-duration work, ergonomics becomes a real productivity issue.
Leica's dental microscopy guidance similarly emphasizes neutral posture, binocular positioning, and working distance when considering microscope ergonomics. :contentReference[oaicite:6]{index=6}
One reason customers consider this type of microscope is its broad application range. The same basic stereo observation principle can be useful in electronics, dental laboratories, jewelry, precision machinery, education, research, repair, and quality control.
I would not describe this microscope as a tool for only one industry. Its strength is that stereo observation works across many small-object inspection tasks.
This is one of the most natural applications. Operators can use a stereo microscope to inspect solder joints, PCB areas, component connections, connectors, wires, and other small electronic parts.
When reworking a circuit board, the microscope gives the operator a closer view while still allowing tools to be used around the target. The right working distance is especially important here.
Leica's industrial microscopy information specifically identifies assembly, soldering, rework, and printed circuit board inspection as applications where stereo microscopy can be useful. :contentReference[oaicite:7]{index=7}
Dental laboratories handle small structures and detailed surfaces every day. A Binocular Stereo Microscope can assist with visual inspection of dental components, models, restorations, and other laboratory work where close observation is required.
However, I make an important distinction here: a microscope used directly in clinical dental procedures may have different requirements from a microscope used in a dental laboratory. Buyers should select the equipment according to its actual intended use.
Training is another possible application. Students can use magnified observation to understand small structures and practice precision techniques. A binocular view also makes it easier to demonstrate depth and spatial relationships.
Repair technicians often need to locate a tiny component or inspect a small connection before deciding what to do next. A stereo microscope provides a larger and clearer view while keeping the work area accessible.
Jewelry contains many small features: stone settings, edges, polishing marks, tiny scratches, metal joints, and surface details. Three-dimensional viewing helps the operator understand these features more naturally.
Small mechanical parts can have grooves, holes, edges, curved surfaces, and machining marks that are difficult to inspect with the naked eye. Stereo microscopy provides a practical close-up view without completely losing the overall shape of the part.
Educational institutions can use stereo microscopes for practical science classes, technical training, electronics education, materials observation, and basic inspection exercises.
| Application | Typical Task | Important Considerations |
|---|---|---|
| Soldering | PCB repair and component rework | Working distance, stable focus, tool access |
| Electronics | Component and solder-joint inspection | Field of view, detail visibility, illumination |
| Dental laboratory | Small-part and surface inspection | Binocular viewing, optical clarity, ergonomics |
| Dental training | Teaching detailed observation | Ease of operation and viewing comfort |
| Jewelry | Stone, setting, and surface inspection | Depth perception and detail visibility |
| Precision machinery | Small-part inspection | Working distance and mechanical stability |
| Education | Hands-on observation and training | Simple operation and comfortable viewing |
| Quality control | Surface and assembly checks | Repeatable observation and stable focusing |
This comparison reflects general Stereo Microscope Applications. The final suitability depends on the actual model, optical configuration, accessories, specimen size, lighting, and working environment.
This is worth giving its own section because it is one of the easiest areas for buyers to misunderstand.
When someone sees “WF10x/20mm Stereo Microscope,” they may assume the entire microscope has a fixed 10× magnification. That is not necessarily correct.
In standard microscope terminology, the first number can indicate eyepiece magnification, while the second number can indicate field number. Evident explains that field number is related to the diameter of the intermediate image visible through the eyepiece. It also gives the basic relationship between field number, objective magnification, and actual field of view. :contentReference[oaicite:8]{index=8}
For example, if a 20 mm field-number eyepiece is used with a 10× objective, the approximate field of view calculated using the conventional formula would be 2 mm. This does not mean every stereo microscope using a 10×/20 eyepiece will have exactly the same practical viewing experience because stereo optical systems can have additional optical elements and different designs.
| Specification Term | What It Tells You | What It Does Not Tell You Alone |
|---|---|---|
| Eyepiece magnification | Magnification provided by the eyepiece | Total system magnification |
| Field number | Nominal eyepiece field size | Exact working field under every optical configuration |
| Objective magnification | Magnification from the objective | Complete user viewing experience |
| Working distance | Space between objective and sample at focus | Optical resolution by itself |
| Depth of field | Range of sample height appearing acceptably focused | Overall image quality by itself |
| Resolution | Ability to distinguish fine details | Comfort or working space |
Leica's stereo microscope selection guidance similarly treats magnification, field of view, working distance, depth of field, resolution, and numerical aperture as different factors rather than one single “good microscope” number. :contentReference[oaicite:9]{index=9}
So when a customer asks me, “Is 10× enough?”, I usually ask another question: “Enough for what?”
That is the more useful way to choose a microscope.
From the outside, a microscope may look like a relatively simple combination of a body, lenses, eyepieces, and a stand. From the manufacturing side, there are many small details that need to work together.
We first need to understand the application. If the customer is using the microscope for soldering, we pay attention to the workpiece, tool access, and required observation range. If the application is dental laboratory inspection, we discuss the expected working distance, viewing position, and optical configuration.
We confirm the microscope model and optical components according to the order. This includes the binocular head, eyepiece arrangement, objective configuration, and any required accessories.
The mechanical parts are assembled and checked for proper operation. A precision microscope needs more than good lenses. The focusing and supporting mechanisms must also work smoothly.
Before delivery, we check optical performance, focusing, mechanical operation, accessories, appearance, and overall assembly quality. This is our opportunity to identify problems before the microscope leaves the factory.
The production cycle depends on the microscope model, optical configuration, accessories, order quantity, and customization requirements. Standard models can usually be arranged faster. Customized orders may require additional production time because configuration details have to be confirmed and prepared.
We protect each microscope with cushioning and dust-proof materials. The microscope is packed in an individual box and then placed into reinforced export cartons.
For optical instruments, I take packaging seriously. International transportation is not always gentle. Products can be loaded, unloaded, moved between warehouses, and handled by different logistics teams. Good internal protection helps reduce the risk of transportation damage.
Depending on the destination and delivery requirements, we can arrange transportation by air freight, sea freight, express delivery, or another suitable logistics method.
Payment is arranged according to the order agreement, commonly with a deposit and balance before shipment. Delivery includes the agreed microscope configuration, accessories, user documents, and applicable inspection or certification documents.
For overseas customers, I recommend confirming the document list before production. This is especially useful when the microscope is being purchased for an institution, distributor, laboratory, or regulated application.
Our company is located in Haishu District, Ningbo, where transportation and manufacturing resources make international business convenient. We have built our business around optical instruments, precision components, and related manufacturing capabilities.
We are engaged in the production of educational microscopes, industrial inspection microscopes, professional jewelry inspection microscopes, optical components, and precision injection molding. This range gives us experience with different types of observation requirements.
Our products are exported to more than 20 countries and regions, including America, Brazil, Germany, the Netherlands, and Japan. Working with overseas customers has taught us that product quality is only one part of a successful order. Documentation, packaging, communication, delivery, and after-sales support matter too.
Our company has been certified to the ISO 9001 quality management system. ISO describes ISO 9001 as a quality management framework that helps organizations establish consistent processes, evaluate performance, and improve their systems over time. :contentReference[oaicite:10]{index=10}
For us, the practical value is process control. We want product inspection and customer requirements to be part of the normal workflow, rather than something added at the last minute.
According to the company information supplied for this product page, our products have been certified to CE and RoHS. For a specific model, buyers should confirm the exact applicable documentation and conformity details with us before purchasing.
CE requirements depend on the product and the EU legislation that applies to it. The European Commission explains that manufacturers need to identify applicable requirements and follow the relevant conformity assessment procedure before affixing the CE marking. :contentReference[oaicite:11]{index=11}
Our company credo is “Nothing is perfect only better and better.” I think that sentence describes manufacturing quite well. Even when a product is already working, there is still room to improve assembly consistency, packaging, documentation, service, or the way we understand customer needs.
We do not want customers to choose a microscope simply because the product name sounds suitable. We prefer to understand the actual application and then discuss the microscope configuration, accessories, production cycle, delivery requirements, and documentation.
WF10x/20mm generally describes a wide-field 10× eyepiece with a 20 mm field number. The 20 mm figure should not automatically be interpreted as the actual field of view of the complete microscope. Actual viewing conditions depend on the objective and complete optical system. :contentReference[oaicite:12]{index=12}
Yes. A stereo microscope can be useful for soldering, electronics assembly, PCB inspection, component repair, and rework. The exact suitability depends on working distance, optical configuration, illumination, and the size of the components.
Working distance gives the operator space between the objective and the workpiece. When soldering, tools such as soldering irons, tweezers, cutters, and probes need to move around the component. A suitable working distance makes this easier. :contentReference[oaicite:13]{index=13}
It may be suitable for certain dental laboratory, inspection, training, or related applications depending on the configuration. For direct clinical or surgical use, customers should confirm that the selected model is specifically appropriate for the intended medical application and meets all applicable regulatory requirements.
In a stereo microscope, the binocular optical system provides two viewing paths that create a useful sense of depth. This is one of the main reasons stereo microscopes are widely used for solid objects and hands-on inspection.
Yes. It can be used to inspect electronic components, PCB areas, solder joints, connectors, and other small structures. For detailed rework, working distance and tool access should be considered when selecting the configuration.
Yes. Stereo microscopy is well suited to observing three-dimensional jewelry structures, stone settings, metal surfaces, edges, polishing marks, and other small details.
Customization can be discussed according to the microscope model, optical configuration, accessories, order quantity, and application requirements. Customized orders may need additional production time.
The production cycle depends on the model, optical configuration, accessories, quantity, and customization requirements. Standard models can generally be arranged faster, while customized configurations may require additional time.
Before delivery, we check optical performance, focusing, mechanical operation, accessories, appearance, and overall assembly quality. We also confirm the agreed product configuration and delivery documents.
Each microscope is protected with cushioning and dust-proof materials, packed in an individual box, and then placed inside reinforced export cartons. This packaging method is intended to reduce transportation risks during international shipment.
Payment is arranged according to the order agreement. A common arrangement is a deposit followed by the balance before shipment, but the final terms depend on the specific order and customer agreement.
Depending on the destination and delivery requirements, transportation can be arranged by air freight, sea freight, express delivery, or another suitable logistics method.
Applicable inspection or certification documents can be supplied according to the selected product and order. Our supplied company information states that our products have CE and RoHS certification. For a specific market, buyers should confirm the exact documents required for the selected model before ordering.
After years of working with optical products, I have found that the best microscope specification is not necessarily the one with the biggest number. The useful specification is the one that matches the work.
For soldering, the operator needs a clear view, depth perception, stable focusing, and enough room to use tools. For electronics inspection, field of view and detail visibility matter. For dental laboratory work, binocular observation, optical clarity, working position, and the intended application all need to be considered. For education, simple operation and comfortable viewing become especially important.
That is why we position our WF10x/20mm Stereo Microscope Soldering Dental Microscope as a practical stereo observation solution rather than simply focusing on magnification.
The WF10x/20mm eyepiece configuration provides a useful optical reference, while the stereo design supports three-dimensional observation. The microscope can be considered for soldering, electronics assembly, repair, dental laboratory applications, education, jewelry inspection, precision machinery, laboratory work, and quality control, depending on the final configuration.
At Ningbo Huaguang Precision Instrument Co., Ltd., we combine microscope manufacturing with optical component production and precision injection molding. We export products to more than 20 countries and regions and maintain an ISO 9001 quality management system certification. According to our supplied company information, our products have CE and RoHS certification.
We also understand that B2B microscope purchasing is about more than the microscope itself. Production time, accessories, inspection, documentation, payment, packaging, transportation, and after-sales communication all become part of the final result.
If you are looking for a WF10x/20mm stereo microscope for soldering, a Binocular Microscope for electronics inspection, a stereo microscope for dental laboratory applications, or a practical microscope for precision inspection, we recommend starting with your actual workpiece and working method. Once we know what you need to see and how you need to work, we can discuss the appropriate optical configuration and supporting accessories.
That is the approach we follow at Huaguang: understand the work first, select the optical system second, and then make sure the finished microscope is checked, protected, documented, and delivered properly.
Evident Scientific — Standard 10X Adjustable-Focus Eyepiece, Field Number 20. :contentReference[oaicite:14]{index=14}
Evident Scientific — Microscope optical terminology and field-number explanation. :contentReference[oaicite:15]{index=15}
Leica Microsystems — Stereo microscope selection factors including field of view, working distance, depth of field, and resolution. :contentReference[oaicite:16]{index=16}
Leica Microsystems — Assembly and rework microscopy, including soldering and working-distance considerations. :contentReference[oaicite:17]{index=17}
Leica Microsystems — Stereo Microscope Applications for electronics production and manual rework. :contentReference[oaicite:18]{index=18}
Leica Microsystems — Dental microscopy and ergonomic working-position considerations. :contentReference[oaicite:19]{index=19}
