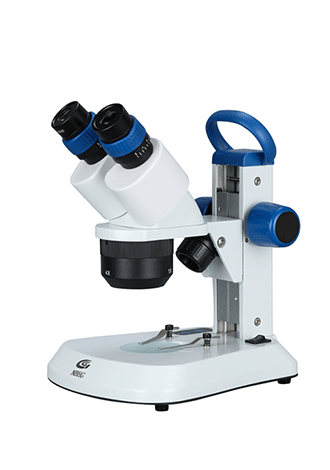

Binocular WF10x/20mm Stereo Microscope With Rotatable Head for Precision Inspection

1. A Practical Stereo Microscope Built Around Real Inspection Work

When we design a stereo microscope, we do not start by asking how many technical terms we can put into a product description. We start with a simpler question: what does the user actually need to see?

For many inspection jobs, looking at a small component with one eye is simply not enough. You may need to judge the shape of an edge, check the position of a tiny part, inspect a surface, compare two areas, or work on a component while observing it at the same time. This is where a Binocular Stereo Microscope becomes useful.

Our Binocular WF10x/20mm Stereo Microscope With Rotatable Head is designed for this type of practical work. It combines binocular stereo observation with a WF10x/20mm eyepiece specification and a rotatable head that gives the operator more flexibility when setting the viewing position.

I see this microscope as a working tool rather than simply an optical instrument. It is suitable for electronics assembly, Jewelry Inspection, precision machinery, medical equipment, education, laboratories, repair work, product development, and quality control. The exact configuration can be adjusted according to the microscope model, optical requirements, accessories, and application.

The binocular optical path allows the user to observe through both eyes. This matters because stereo observation gives the brain two slightly different views of the object, helping the operator understand its shape and depth more naturally. Leica Microsystems also explains that binocular observation contributes to depth perception because each eye receives a different image of the specimen. Leica Microsystems microscopy reference.

For us, the value is simple: the microscope should help the operator see the part clearly, keep the work area comfortable, and make repeated inspection easier.

Technical note: General stereo microscope principles in this table are based on published microscopy guidance from Leica Microsystems. Exact specifications of this Huaguang model should be confirmed against the final configuration and product documentation.

2. How the Binocular Stereo Microscope Works

A stereo Microscope Works differently from a standard compound microscope. Instead of simply producing a highly magnified flat image, a stereo microscope is designed to give the operator a more natural three-dimensional view of the sample.

Inside the optical system, the left and right viewing paths provide slightly different views. Your eyes receive these images separately, and your brain combines the information. That is one reason stereo microscopes are particularly useful when the sample has height, edges, holes, curved surfaces, or other three-dimensional features.

This is not just an optical theory that sounds good in a brochure. You can notice the difference during actual inspection. If I am checking a connector, metal component, jewelry setting, or small mechanical part, I want to understand not only whether a mark is present but also where that mark sits on the surface.

Leica's technical explanation of stereo microscopy notes that binocular viewing improves depth perception because the two eyes receive different images. Its guidance also points out that stereo microscopes are often used for larger samples or specimens where depth and surface shape are important.

Another important point is the relationship between magnification, field of view, working distance, and depth of field. These four factors should not be considered separately.

Higher magnification allows smaller details to be viewed, but the visible area generally becomes smaller. Leica explains that field of view depends on the combined magnification and eyepiece configuration, while working distance describes the space between the objective lens and the sample when the image is in focus.

For inspection work, that working space can be very important. If the operator needs to hold a small tool, rotate a component, solder a connection, adjust a part, or move a sample beneath the objective, enough room makes the job much easier.

This is one reason I pay attention to the mechanical structure of a stereo microscope, not only its optical specifications.

Why binocular viewing is useful

With a binocular stereo microscope, the operator does not have to rely on one eye alone. This is especially helpful during longer inspection sessions. The natural two-eye view also makes it easier to judge the shape and position of small objects.

For a technician inspecting a PCB, for example, the task may involve checking solder joints, component placement, connector edges, or small surface defects. For a jewelry inspector, the job may involve checking stones, settings, polishing marks, engraving, and tiny surface features.

The same optical principle can therefore support very different industries.

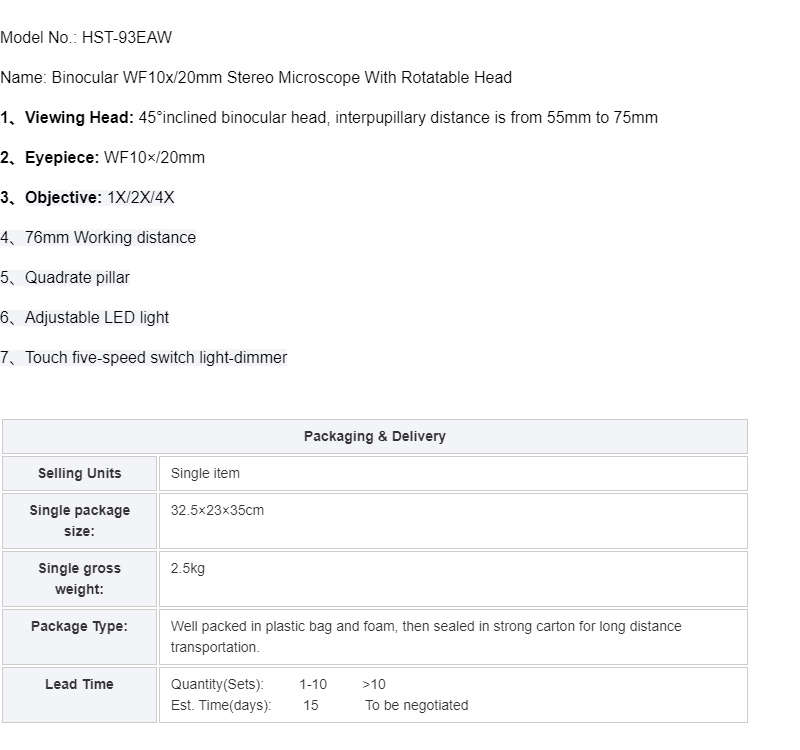

3. What the WF10x/20mm Specification Means in Daily Use

One question I often hear about microscope eyepieces is: what does “WF10x/20mm” actually mean?

In simple terms, 10x refers to the eyepiece magnification, while 20mm is associated with the field number of the eyepiece. The field number is used to describe the approximate diameter of the field visible through the eyepiece under the relevant optical conditions.

This is different from saying that the entire microscope always provides exactly 10x magnification. Total visual magnification depends on the objective, zoom or magnification changer, and eyepiece. Leica explains this relationship as the combination of objective magnification, zoom factor, and eyepiece magnification.

Source: Leica Microsystems, “Key Factors to Consider When Selecting a Stereo Microscope.” Exact total magnification and field of view depend on the complete optical configuration and should not be assumed from the eyepiece designation alone.

This distinction is important when purchasing a microscope. I do not recommend choosing a product simply because one number looks impressive. The complete optical path needs to match the work.

For example, if the main job is locating and inspecting relatively large components, an excessively high magnification may actually slow the operator down because the visible area becomes smaller. If the job involves very small details, a higher magnification configuration may make more sense.

That is why we discuss the sample, inspection method, required detail, working position, lighting, accessories, and production environment before confirming a final configuration for a customized order.

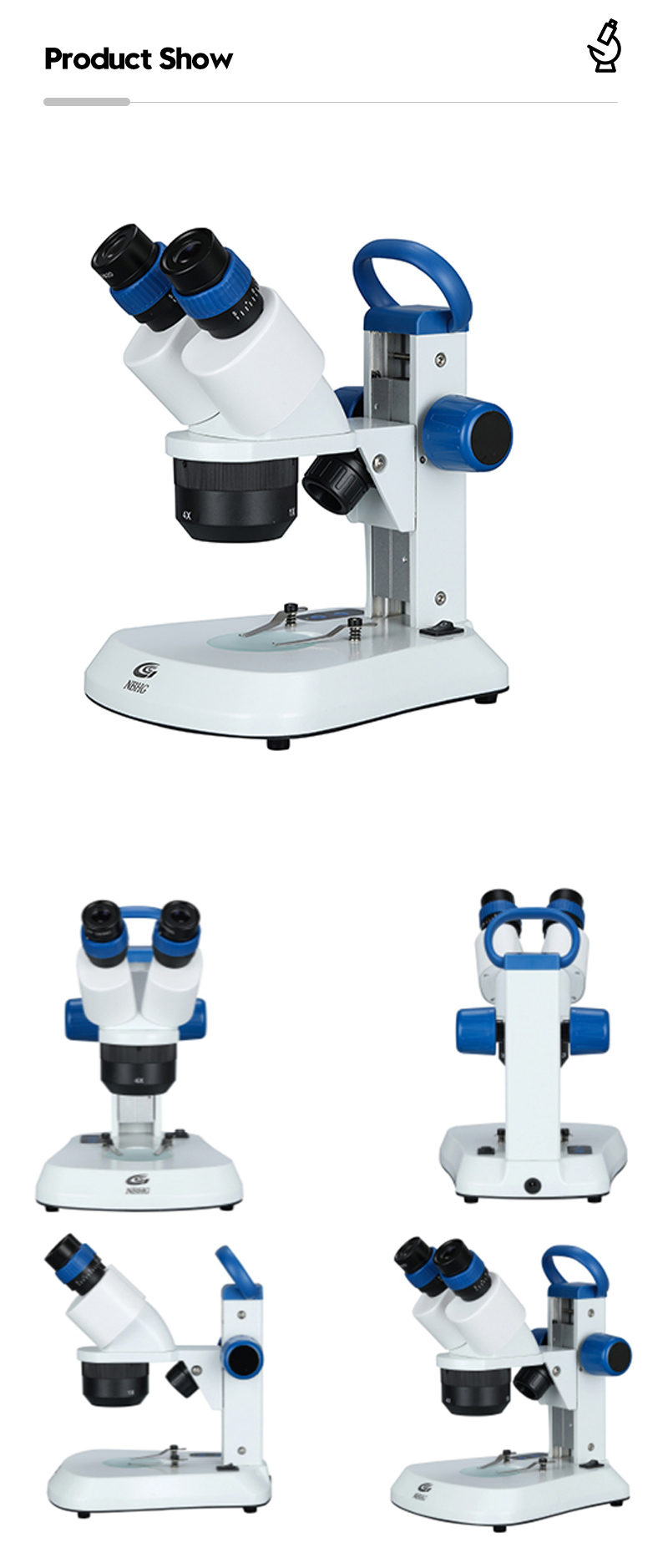

4. Rotatable Head: A Small Mechanical Feature That Makes a Difference

The rotatable head is one of the practical features that gives this binocular stereo microscope a different working feel.

When several people use the same microscope, they may not sit in exactly the same position. One operator may prefer a slightly different viewing direction. Another may need to move around the workbench. In teaching environments, a microscope may also be shared between students and instructors.

A rotatable head provides additional flexibility in positioning the viewing system. Instead of forcing the operator to work from one fixed viewing direction, the head can be adjusted according to the intended configuration and operating needs.

That sounds like a small thing, but anyone who has spent hours doing inspection work knows that small ergonomic details can become big practical issues.

We therefore consider mechanical movement, focusing feel, head positioning, stand stability, and overall assembly quality during production and inspection.

For routine inspection, I want the microscope to behave predictably. The head should remain stable after adjustment. The focusing mechanism should respond smoothly. The optical system should be correctly aligned. The stand should support the microscope without unnecessary movement.

These points are not always visible in a short product specification, but they matter when the microscope becomes part of a daily production process.

Binocular viewing versus monocular viewing

Source: The comparison is based on the optical principles described by Leica Microsystems for binocular stereo observation. It is a general comparison rather than a comparison between specific commercial models.

5. Where We Use This Stereo Microscope

One reason I like the stereo microscope format is its versatility. It does not belong to only one industry.

Electronics and PCB inspection

Electronics technicians often need to inspect small components, solder joints, connectors, wires, board surfaces, and assembly details. A binocular stereo microscope provides a practical view while leaving the operator able to work with the sample.

For PCB inspection, the goal is often not simply maximum magnification. The operator needs enough viewing area to locate the relevant part and enough detail to identify a problem. This balance between field of view, magnification, and working distance is one of the key points highlighted in professional stereo microscope selection guidance.

Jewelry inspection

Jewelry contains many curved, reflective, and very small features. Inspectors may need to check settings, surfaces, edges, polishing quality, engraving, or stone placement.

A stereo viewing system is useful because jewelry is not a flat object. Depth and surface shape matter.

Precision machinery

Small mechanical components often have holes, grooves, threads, edges, and machined surfaces that are difficult to inspect with the naked eye.

Our stereo microscope can be used as part of a visual inspection station where operators check workmanship before the component moves to the next process.

Medical equipment

Small medical device components can require detailed visual checking during assembly and quality control. The microscope configuration should be selected according to the component size, required detail, illumination conditions, and inspection procedure.

Education and laboratories

In teaching environments, a binocular stereo microscope is useful because students can observe solid specimens and objects with a more natural three-dimensional view. It can also be used in basic laboratory observation, sample sorting, and practical training.

Repair and maintenance

Repair technicians often work on Small Parts where both observation and hand movement are required. A stereo microscope provides an enlarged view while leaving space around the sample for practical work.

Quality control

For quality control teams, consistency is important. The same type of defect needs to be recognized repeatedly by different operators.

A microscope cannot replace a complete quality system, but it can become a useful inspection tool inside that system.

6. How We Manufacture and Check the Microscope

For us, a microscope is not finished when the optical components are simply assembled together. We pay attention to the complete product because the final user experiences the whole system, not one individual component.

Our company, Ningbo Huaguang Precision Instrument Co., Ltd., is located in Haishu District, Ningbo. We focus on educational microscopes, Industrial Inspection microscopes, professional jewelry inspection microscopes, optical components, and precision injection molding.

Our products are supplied to customers in more than 20 countries and regions, including America, Brazil, Germany, the Netherlands, and Japan. This international experience also means we understand that customers may have different packaging, documentation, electrical, accessory, and logistics requirements.

For a standard microscope, the production process generally includes component preparation, optical assembly, mechanical assembly, adjustment, inspection, cleaning, and packaging. For customized configurations, the process can involve additional communication and confirmation before production starts.

I prefer to be clear about production time rather than give one fixed number for every order. The actual production cycle depends on the model, optical configuration, accessories, order quantity, and customization requirements. Standard products can usually be arranged faster, while customized products may need additional time.

What we check before shipment

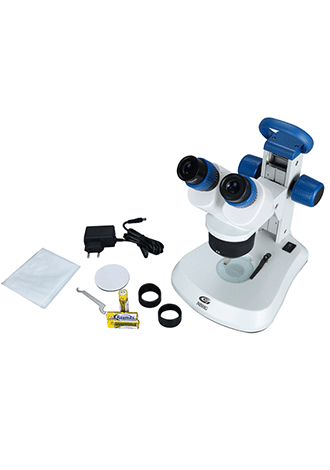

Before delivery, we check the optical performance, focusing operation, mechanical movement, accessories, appearance, and overall assembly condition.

We also pay attention to packaging because a microscope is a precision instrument. Good performance in the factory does not mean much if the product is poorly protected during international transportation.

Our standard approach is to use cushioning and dust-proof protection, place the microscope in an individual box, and then use reinforced export cartons. The exact packaging method can be adjusted according to the product configuration and transportation requirements.

Our company has supplied product information stating ISO9001 quality management system certification, as well as CE and RoHS certification for applicable products. Certification documents should always be confirmed against the specific product configuration and current order documentation.

Our working philosophy is simple: “Nothing is perfect only better and better.” In actual manufacturing, that means we continue to improve product design, assembly, quality control, service, and communication with customers.

7. Why Work With Ningbo Huaguang Precision Instrument Co., Ltd.?

When buying a microscope from a manufacturer, I believe the product itself is only one part of the decision. The other part is whether the supplier can communicate clearly and support the product after the order is placed.

We have experience in educational microscopy, industrial inspection, jewelry inspection, optical components, and precision injection molding. This gives us a broader understanding of how microscopes are used in different working environments.

We also understand that an overseas buyer may not want a standard product exactly as it comes from the factory. Different applications may require different eyepieces, stands, illumination systems, adapters, working arrangements, or other accessories.

Instead of guessing, we prefer to confirm the application first.

For example, I may ask what type of sample you are inspecting, how large the sample is, what detail you need to see, whether the operator needs to use tools under the objective, how many people will use the microscope, and whether the microscope will be used continuously or occasionally.

These questions help us avoid a common purchasing mistake: selecting a microscope based only on magnification.

We also provide practical support around production and delivery. Depending on the order, transportation can be arranged through air freight, sea freight, express delivery, or another suitable logistics method.

Payment follows the agreed order terms, commonly using a deposit with the balance paid before shipment. The exact payment arrangement is confirmed in the quotation and sales agreement.

Our goal is not to make every microscope look the same. Our goal is to provide a stable product configuration that makes sense for the customer's actual inspection work.

8. Frequently Asked Questions About the Binocular WF10x/20mm Stereo Microscope

Q1. What does WF10x/20mm mean on a stereo microscope?

WF10x/20mm normally identifies the eyepiece configuration. The 10x refers to eyepiece magnification, while 20mm is associated with the eyepiece field number. It should not be interpreted as the total microscope magnification. Total magnification depends on the complete optical system.

Q2. Is this microscope suitable for PCB inspection?

Yes. A binocular stereo microscope can be used for PCB and electronics inspection, especially when the operator needs to observe components, solder joints, connectors, and surface details while handling the board. The final optical configuration should be selected according to the PCB size and inspection requirements.

Q3. What is the benefit of a rotatable microscope head?

A rotatable head provides more flexibility when setting the viewing position. This can be useful when different operators use the same microscope or when the working position changes during inspection.

Q4. Is a stereo microscope better than a Digital Microscope?

They are designed for somewhat different workflows. A stereo microscope provides direct binocular optical observation and natural depth perception. A digital microscope displays the image electronically and can be convenient for recording, sharing, or group viewing. The better choice depends on the inspection process.

Q5. Is higher magnification always better?

No. Higher magnification can reveal smaller details, but the field of view generally becomes smaller. Working distance can also change with optical configuration. Leica's microscope selection guidance recommends considering magnification, field of view, working distance, depth of field, and resolution together rather than looking at one number alone.

Q6. What is working distance?

Working distance is the distance between the objective lens and the sample when the sample is properly focused. It is important when the operator needs room to handle or manipulate the sample beneath the microscope.

Q7. Why is depth of field important?

Depth of field describes how much of the sample's depth appears acceptably sharp at one focus position. It becomes particularly useful when inspecting objects with different heights, curved surfaces, or three-dimensional structures. Leica notes that depth of field is related to magnification, numerical aperture, and resolution.

Q8. Can this stereo microscope be customized?

Depending on the required configuration, customization may be possible. We can discuss the optical system, accessories, stand, illumination, and other requirements before confirming production. The actual customization options should be checked against the requested model.

Q9. How long does production take?

The production cycle depends on the model, optical configuration, accessories, quantity, and customization requirements. Standard configurations can generally be arranged more quickly than customized orders. We confirm the actual lead time before the order is finalized.

Q10. How is the microscope packed for export?

We use protective cushioning and dust-proof materials, individual product packaging, and reinforced export cartons. The packaging arrangement can be adjusted according to the microscope configuration and shipping method.

Q11. What transportation methods can be used?

Depending on the destination, quantity, and delivery requirements, we can arrange air freight, sea freight, express delivery, or another suitable logistics method.

Q12. How should I choose the right configuration?

I recommend starting with the sample rather than starting with the specification sheet. Tell us what you need to inspect, the approximate sample size, the smallest detail you need to see, the working method, and the expected quantity. From there, we can discuss the suitable optical and mechanical configuration.

Conclusion: A Microscope Designed for Practical Observation

Our Binocular WF10x/20mm Stereo Microscope With Rotatable Head is built around a straightforward idea: make small and detailed inspection easier to perform.

The binocular viewing system supports natural stereo observation. The WF10x/20mm eyepiece specification provides a practical optical starting point, while the rotatable head gives users additional flexibility when positioning the microscope. These features make the microscope suitable for electronics, PCB inspection, jewelry, precision machinery, medical equipment, education, laboratories, repair work, and quality control.

At the same time, I do not recommend choosing a microscope based on one specification alone. Magnification, field of view, working distance, depth of field, optical quality, lighting, mechanical stability, and the actual inspection method all affect the final experience.

That is how we approach microscope manufacturing at Ningbo Huaguang Precision Instrument Co., Ltd. We look at the application first, then the configuration, and finally the production and delivery details.

If you are comparing Binocular Stereo Microscopes for industrial inspection, laboratory observation, PCB checking, jewelry inspection, or educational use, we can discuss the sample and working conditions with you and confirm whether this configuration is suitable for your application.

Technical reference sources:

• Leica Microsystems – Key Factors to Consider When Selecting a Stereo Microscope.

• Leica Microsystems – Depth of Field in Microscope Images.

• Leica Microsystems – Stereo Microscope technical and application information.

• Evident Scientific – Under the Stereo Microscope.

• Leica Microsystems – EZ4 Stereo Microscope technical reference.
