When I talk with customers about choosing a stereo Microscope, I often find that they are not simply looking for higher magnification. They want a microscope that is comfortable to use, easy to focus, stable during inspection, and flexible enough to connect with a camera or display system. This is where our Trinocular Stereo Microscopes with Focusing Mechanism become a practical choice.
At Ningbo Huaguang Precision Instrument Co., Ltd., we produce microscopes for education, Industrial Inspection, jewelry checking, laboratories, electronics assembly, repair work, and other detailed observation tasks. Our Trinocular Stereo Microscopes combine direct binocular viewing with a third optical port for camera connection. The focusing mechanism helps users adjust the image clearly according to the sample, working distance, and observation requirements.
In real working conditions, the details are often small. A solder joint may be difficult to see. A jewelry surface may have a tiny scratch. A plastic part may show a small molding defect. A connector may need to be checked before assembly. These jobs require more than a basic magnifying glass. They need a stable optical system, comfortable viewing, suitable lighting, and smooth operation.
Our Trinocular Stereo Microscopes with Focusing Mechanism are designed around these practical needs. Users can observe samples through the binocular eyepieces while connecting a compatible camera to record images, show live views on a monitor, or share inspection results with colleagues and customers. The focusing mechanism allows the operator to bring the sample into clear view without changing the entire working setup.
Every application is different, so I do not recommend choosing a microscope only by looking at one number on a product sheet. Magnification, working distance, field of view, illumination, sample size, camera requirements, and operator comfort all matter. In this article, I will explain how our trinocular stereo microscopes work, what features deserve attention, where they can be used, and how we manage production and delivery.
A trinocular stereo microscope is a microscope with three optical paths or viewing ports. Two ports are used for binocular observation, allowing the operator to look through both eyes. The third port is normally prepared for a camera or image recording system.
This design is useful when the user needs to observe the sample directly and also display or record the image. For example, a technician may inspect a PCB through the eyepieces while another person watches the same work on a monitor. A laboratory may save microscope images for reports. A teacher may show a sample to a group of students. A quality control team may keep images as part of an inspection record.
The stereo optical system creates a three-dimensional view of solid objects. Instead of seeing only a flat enlarged image, the user can better understand the shape, height, edge, position, and surface structure of the sample. This is especially helpful when working with components, mechanical parts, jewelry, circuit boards, and other objects that have depth.
The focusing mechanism is another important part of the design. It allows the user to move the optical system or focusing assembly until the sample appears sharp. Smooth focusing is important because a small change in sample height can affect image clarity. In detailed work, the operator may need to focus on different areas of the same object several times.
Our microscope configuration can be selected according to the application. The exact optical range, camera interface, stand, illumination, working distance, and accessories should be confirmed before ordering. This is because a microscope for soldering may need a different setup from a microscope for Jewelry Inspection or classroom use.
The working principle is easy to understand. Light illuminates the sample, the optical system collects the reflected light, and the lenses enlarge the image so the operator can observe small details. In a stereo microscope, the two viewing paths look at the sample from slightly different angles. The brain combines these views and produces a natural sense of depth.
This depth effect helps the operator judge whether a component is higher or lower, whether a surface is curved, and how different parts are positioned. It is one reason stereo microscopes are widely used for assembly and repair work. When a technician is placing a small component, the three-dimensional view can be more useful than a flat image.
The focusing mechanism controls image sharpness. When the sample is too close or too far from the optical system, the image may look blurred. By turning the focusing control, the operator adjusts the position of the optical system until the details become clear. A stable focusing mechanism should move smoothly and hold its position during observation.

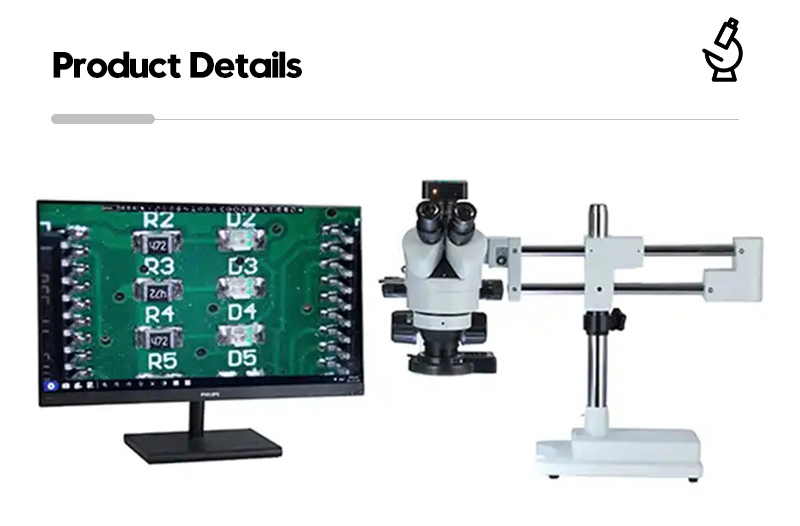

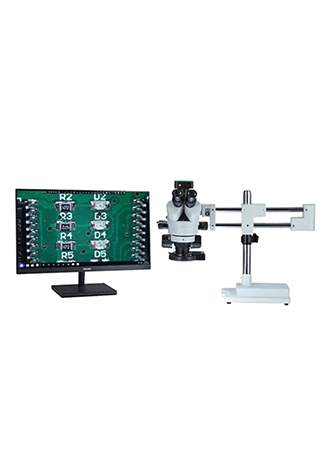

The trinocular port sends an image to a compatible camera. Depending on the camera and software, the user may be able to:
View the sample on a computer or monitor.
Capture still images for inspection records.
Record short videos for training or process review.
Share live images with other operators.
Compare samples before and after repair or processing.
Use measurement or annotation software when supported by the camera system.
The camera system is not always included in the standard microscope package. Some customers already have a camera, while others need a complete microscope and imaging solution. Before shipment, we confirm the required camera interface, adapter, software compatibility, display method, and accessories.
Lighting also affects the final image. A sample with a shiny surface may reflect too much light. A dark component may need stronger illumination. A recessed area may require a different light angle. For this reason, illumination should be selected according to the sample rather than treated as a secondary accessory.
The binocular viewing design allows the operator to use both eyes. This is generally more comfortable for long inspection sessions than using one eye only. It also supports a natural stereo view of the sample.
Comfort depends on more than the eyepieces. The operator’s posture, viewing angle, interpupillary adjustment, eyepiece position, lighting, and working distance all influence the experience. We recommend setting the microscope so the user can sit naturally and keep the shoulders relaxed during inspection.
The third optical port gives the microscope more flexibility. Users can connect a suitable camera for live display, image capture, video recording, or teaching. This is helpful when inspection results must be shared or saved.
A camera port is particularly useful in industrial environments where several people may need to view the same sample. It also supports training because an experienced operator can demonstrate a process while students or new workers watch the screen.
Our product is designed with a focusing mechanism for clear and stable observation. The operator can adjust focus according to the sample height and optical configuration. Smooth focusing reduces unnecessary movement and helps the user stay focused on the inspection task.
For production work, focusing control should not feel loose or uneven. The microscope should remain stable after adjustment. The exact focusing structure and adjustment range depend on the selected model, so we confirm these details according to the customer’s requirements.
The stereo image helps users understand the shape and position of objects. This is valuable for soldering, assembly, component checking, jewelry inspection, and mechanical work. The operator can often judge edges and surface changes more naturally than with a flat digital image.
Different users need different microscope arrangements. Some need a large base for stable work. Some need a Long Working Distance for tools and hands. Some need a camera and monitor. Others need ring lighting, a stand, or special holders for Small Parts.
We can discuss the sample size, observation distance, magnification needs, camera requirements, and working environment before recommending a configuration. This helps avoid buying a microscope that looks suitable on paper but is inconvenient in daily use.
When customers ask me which microscope they should choose, I usually start with the workpiece rather than the microscope name. A suitable model should match the actual inspection task.
| Factor | What It Means | Why It Matters |
|---|---|---|
| Magnification | How large the sample appears | Higher magnification helps with smaller details, but may reduce the visible area. |
| Working distance | Space between the lens and the sample | A longer distance is useful when using soldering tools or handling components. |
| Field of view | How much of the sample can be seen at once | A wider view helps with positioning and checking larger areas. |
| Focusing mechanism | The method used to adjust image sharpness | Smooth focusing supports comfortable and repeatable inspection. |
| Camera port | The optical connection for image capture | It allows live display, recording, teaching, and inspection documentation. |
| Illumination | Light used to illuminate the sample | Correct lighting improves surface visibility and reduces glare. |

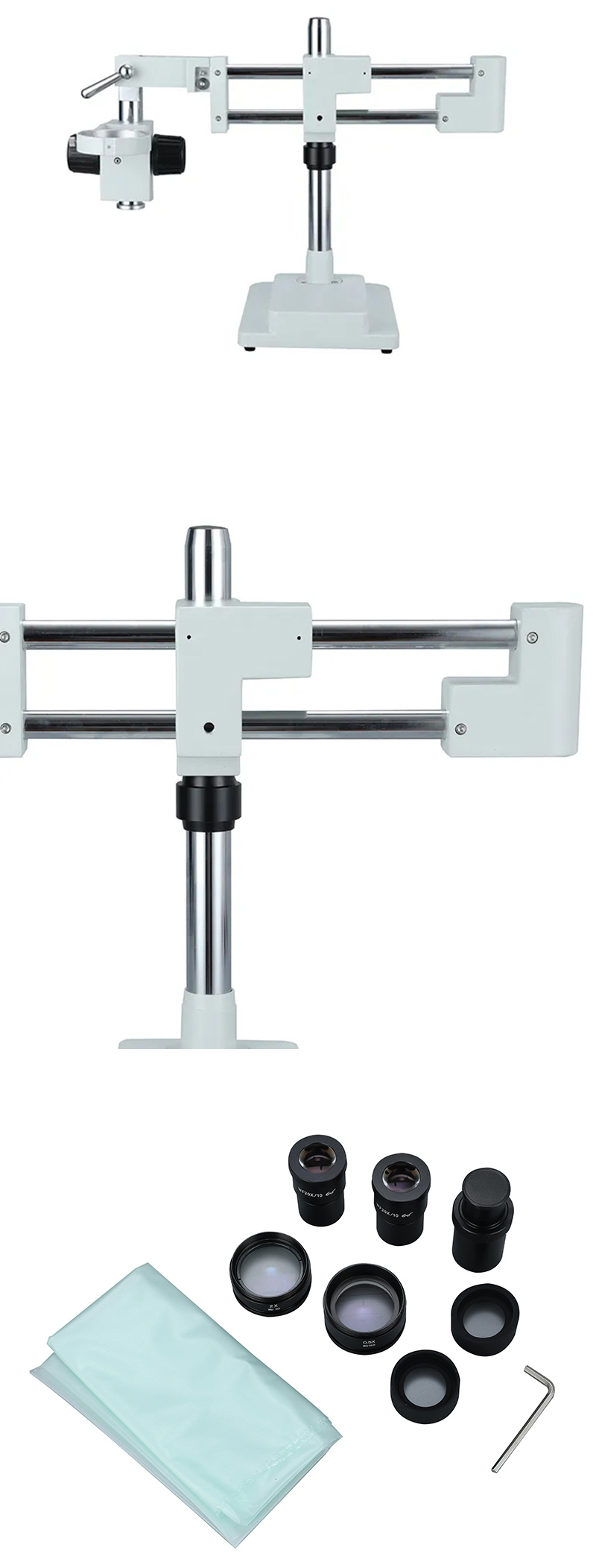

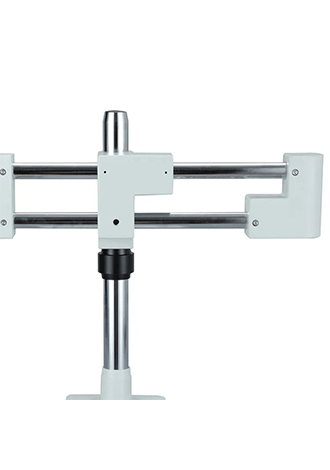

| Stand and base | The support structure of the microscope | A stable stand reduces vibration and supports accurate work. |
The table above summarizes the main factors used in practical microscope selection. The explanation is based on common microscopy principles described by established optical microscope manufacturers and technical education resources. Exact performance depends on the model, optical design, sample, lighting, and operator technique.
Many buyers focus only on magnification. However, higher magnification does not automatically mean better inspection. If the field of view becomes too small, the operator may lose the position of the component. If the working distance becomes too short, there may not be enough space for tools.
For soldering and PCB repair, the operator often needs a balance between detail and working space. For jewelry inspection, surface clarity, lighting control, and comfortable viewing may be more important than simply choosing the highest magnification. For education, a clear image and easy operation are usually more useful than a complicated optical configuration.
Working distance is the space between the objective lens and the sample when the image is in focus. A suitable working distance gives the operator enough room to place tools, move components, or turn the sample.
If the working distance is too short, the lens may get in the way during assembly or repair. If it is too long, the system may require a different optical arrangement. We help customers consider the actual working process before confirming the model.
Shiny surfaces are common in jewelry, metal parts, solder joints, and coated components. Strong direct light may create bright reflections that hide small marks. A softer or adjustable light source can make the surface easier to inspect.
For flat objects such as PCB boards, even lighting is often helpful. For uneven objects, angled lighting may reveal edges and height changes. The best solution depends on the sample material, color, surface finish, and inspection goal.
Our trinocular stereo microscope is not designed to replace every type of microscope. Different microscope structures are suitable for different tasks. The following comparison can help buyers understand the basic differences.
| Microscope Type | Typical Viewing Method | Common Strength | Common Application |
|---|---|---|---|
| Trinocular Stereo Microscope | Binocular stereo viewing plus camera port | Three-dimensional observation and image sharing | PCB inspection, assembly, repair, laboratories, training |
| Binocular Stereo Microscope | Two-eye stereo viewing | Comfortable direct observation | Jewelry, education, assembly, general inspection |
| Digital Microscope | Camera and screen viewing | Easy image display and recording | Teaching, documentation, basic inspection |
| Compound Microscope | High-magnification optical viewing | Very small or thin samples | Biology, slides, Laboratory Research |
| Magnifying Lamp | Simple enlarged viewing | Easy operation and low complexity | Basic checking, crafts, simple repair |
The comparison is a general guide, not a performance ranking. A compound microscope may be suitable for prepared slides but less convenient for handling a three-dimensional component. A digital microscope may be convenient for screen viewing but may not provide the same direct stereo experience. A trinocular stereo microscope is useful when users need both direct observation and camera-based imaging.
A digital microscope usually depends on a camera and screen. This can be convenient for group viewing, but the user may not have the same direct optical observation experience. Our trinocular design allows the operator to look through the eyepieces while also using a camera.
This combination is useful when the operator needs precise hand-eye coordination. During soldering or component placement, direct stereo viewing can help the user judge depth and tool position. At the same time, the camera can show the process to another person.
The main difference is the additional camera port. A binocular stereo microscope is suitable for direct observation. A trinocular model adds flexibility for recording, teaching, live display, and documentation.
If the microscope will always be used by one person and no images are needed, a binocular model may be enough. If the customer wants to save images, connect a monitor, or share the inspection process, a trinocular model may be more suitable.
Compound microscopes are commonly used for high-magnification observation of prepared slides and thin samples. Stereo microscopes are designed for larger solid objects and practical surface inspection. They provide more working space and a more natural view of depth.
For electronics, jewelry, mechanical parts, and assembly work, a stereo microscope is often a more practical choice because the operator needs to handle the object while observing it.
Electronics manufacturing is one of the most common application areas. Operators may need to inspect solder joints, circuit traces, connectors, wires, switches, chips, and small mechanical parts.
During PCB repair, the operator may use the microscope to check solder bridges, missing solder, damaged pads, lifted components, or contamination. The trinocular camera port can display the work on a monitor or save images for training and process records.
The focusing mechanism is useful because PCB assemblies may have components at different heights. The operator can adjust the focus when moving from a flat board surface to a raised connector or component.
When soldering small parts, the user needs enough working distance for the soldering iron, tweezers, and other tools. A stereo microscope with a suitable stand and optical configuration can make this work more manageable.
Our microscope can support inspection before soldering, during repair, and after the process. The camera system may also help supervisors review the work or create training material for new technicians.
Jewelry contains many small details, including stone settings, polished surfaces, engraving, edges, prongs, and tiny scratches. Stereo observation helps the operator view these details with depth.
Lighting is especially important for jewelry because metal and stones can reflect light strongly. The correct illumination arrangement helps reduce glare and makes surface details easier to see.
Small mechanical parts often need visual checking after machining, grinding, polishing, or assembly. Operators may inspect edges, holes, grooves, threads, surface marks, and small defects.
A stable microscope stand and smooth focusing mechanism are useful in this environment. The operator can position the part, focus on the inspection area, and record images when required.
Some medical equipment and small instruments contain fine parts that require visual inspection during assembly or quality control. The microscope can help operators check surfaces, connections, tips, edges, and small structures.
The exact suitability depends on the product, cleanliness requirements, inspection procedure, and applicable industry rules. Customers should confirm whether additional cleanroom, documentation, or validation requirements apply to their application.
A trinocular stereo microscope can be useful in classrooms and laboratories because the camera allows students to see the same image on a screen. Teachers can explain sample features while the class observes together.
It can be used for insects, plant materials, minerals, small mechanical parts, electronic components, textiles, and other solid objects. The stereo view helps students understand shape and surface structure more easily.
Quality control teams may use microscopes to compare samples, check surface defects, inspect assembly results, and document findings. Product development teams may use them during prototype review and design improvement.
Image recording can be helpful when the same defect needs to be discussed by engineering, production, and quality departments. However, measurement accuracy depends on the camera, software, calibration, optical system, and inspection method. A microscope image should not be treated as a calibrated measurement unless the complete system has been properly set up.
At Ningbo Huaguang Precision Instrument Co., Ltd., we understand that a microscope is not just a collection of lenses and metal parts. The final user needs a complete working instrument. Mechanical stability, optical clarity, focusing feel, accessory matching, packaging, and after-sales support all influence the customer experience.
Before production, we confirm the microscope model, optical configuration, focusing mechanism, stand, illumination, camera port, accessories, order quantity, and delivery requirements. For customized orders, we also discuss the sample type and working environment.
This step is important because a microscope for PCB soldering may require more working space than a microscope for general observation. A laboratory customer may need a camera and documentation system, while an educational customer may prefer simple operation and easy maintenance.
The optical components must be assembled carefully. The viewing system should provide a clear image, and the binocular paths should work together correctly. Mechanical parts must also be assembled so the microscope remains stable during operation.
The focusing mechanism receives special attention because it is used frequently. A focusing control that feels rough, loose, or uneven can make inspection tiring. We check the focusing and mechanical operation during the assembly and inspection process.
Before shipment, we check the appearance of the microscope, the condition of the housing, the stand, the focusing parts, the eyepieces, the illumination components, and the included accessories.
We also confirm that the delivered configuration matches the order agreement. If a camera adapter, dust cover, power supply, user manual, or other accessory is included, it should be checked before packing.
We check optical performance, focusing operation, mechanical movement, illumination function, and overall assembly quality. The exact inspection items depend on the microscope model and customer requirements.
We do not assume that every microscope needs the same inspection method. Different optical systems, camera configurations, and accessories may require different checks. For special orders, we confirm the inspection details before production.
The production cycle depends on the model, optical configuration, accessories, order quantity, and customization requirements. Standard models can usually be arranged faster when the required parts are available. Customized orders may need additional time for configuration, assembly, testing, and confirmation.
For an accurate delivery schedule, customers should provide the required model, quantity, destination, camera needs, and any special accessories. We can then review the order and provide a practical production arrangement.
Microscopes contain optical and mechanical parts that need careful protection during transportation. We use cushioning and dust-proof materials to reduce the risk of movement, impact, and contamination.
Each microscope is packed in an individual box and then placed in reinforced export cartons. The packaging method may be adjusted according to the microscope size, accessories, shipment method, and destination.
For international orders, we pay attention to the protection of eyepieces, lenses, focusing parts, stands, lighting components, and camera accessories. The goal is to keep the equipment stable from our facility to the customer’s receiving location.
Delivery normally includes the agreed microscope configuration, accessories, user documents, and applicable inspection or certification documents. The exact contents depend on the order.
Before shipment, we confirm the product model and accessories with the customer. If a camera, monitor, adapter, special stand, or other item is required, it should be clearly listed in the quotation and order confirmation.
Payment is arranged according to the order agreement. For many international orders, the arrangement may include a deposit and the balance before shipment. The exact payment method and schedule depend on the order value, product configuration, customer requirements, and agreed commercial terms.
We can arrange transportation by air freight, sea freight, express delivery, or other suitable logistics methods according to the destination and delivery requirements.
Air freight or express delivery may be suitable for smaller and urgent orders. Sea freight may be more practical for larger shipments or combined equipment orders. We review the destination, carton size, weight, delivery time, and customer preference before confirming the shipping method.
Our work does not finish when the microscope leaves the factory. Customers may need help with installation, accessory matching, camera connection, focusing adjustment, lighting setup, or routine use.
We aim to provide clear communication and practical support. If a customer has a question about the microscope configuration, we first check the model, application, and actual problem. This helps us provide a more useful answer instead of giving a general reply.
Ningbo Huaguang Precision Instrument Co., Ltd. is located in Haishu District, Ningbo, an area with convenient transportation and a pleasant working environment. We focus on educational microscopes, industrial inspection microscopes, professional jewelry inspection microscopes, optical components, and precision injection molding.
Our products are exported to more than 20 countries and regions, including America, Brazil, Germany, the Netherlands, and Japan. Working with customers from different markets has helped us understand the importance of stable product quality, clear communication, proper documentation, and reliable packaging.
We have experience supporting different Microscope Applications. Some customers need a basic microscope for education. Others need a stable inspection instrument for electronics, jewelry, machinery, or laboratory work. We discuss the application before confirming the configuration because a practical microscope should match the user’s daily tasks.
Our company has been certified to the ISO9001 quality management system, and our supplied company information states that relevant products have CE and RoHS certifications. Certification documents and product applicability should be confirmed according to the exact model and current order requirements.
Our credo is: “Nothing is perfect only better and better.” We use this idea in product improvement, customer communication, production control, and after-sales service. We believe that steady improvement is more useful than making promises that do not match the actual product.
We also understand that customers may need more than a microscope. They may need a camera, adapter, monitor, lighting system, stand, packaging solution, or advice about the working distance. Our team can review these requirements and help build a suitable configuration.
A binocular stereo microscope has two viewing paths for direct observation with both eyes. A trinocular stereo microscope adds a third optical port for connecting a camera. The trinocular design is useful for image recording, live display, teaching, and inspection documentation.
Yes, the trinocular port is designed for camera connection. The camera, adapter, interface, and software should match the microscope configuration. Please confirm the camera model or required connection before ordering.
The camera is not automatically included in every configuration. Some customers need the microscope only, while others need a complete imaging system. We can confirm the included camera, adapter, monitor, and software according to the order agreement.
The focusing mechanism allows the operator to adjust image sharpness according to the sample height and optical configuration. Smooth focusing is important when inspecting small parts, PCB boards, jewelry, and mechanical components.
It can be used for soldering and PCB inspection when the selected optical configuration provides suitable working distance, magnification, stand space, and lighting. The exact model should be selected according to the soldering tools, component size, and working method.
Yes. Stereo microscopes are suitable for observing jewelry surfaces, stone settings, edges, prongs, polishing marks, and small defects. Proper illumination is important because metal and stones may create strong reflections.
Please provide the microscope name or model, application, required magnification, sample size, working distance, camera requirements, illumination needs, quantity, destination, and any special accessories. If possible, send sample photos or inspection details.
The production cycle depends on the model, optical configuration, accessories, order quantity, and customization requirements. Standard models can usually be arranged faster, while customized orders may require additional production time. We confirm the schedule after reviewing the order details.
Before delivery, we check optical performance, focusing, mechanical operation, accessories, appearance, and overall assembly quality. The exact inspection items depend on the model and order requirements.
We use cushioning and dust-proof materials, individual boxes, and reinforced export cartons. The packaging method may be adjusted according to the microscope size, accessories, and transportation method.
Yes. Transportation can be handled by air freight, sea freight, express delivery, or another suitable logistics method. We consider the destination, shipment size, delivery requirements, and customer preference.
We can discuss customized requirements involving optical configuration, camera connection, accessories, stand, lighting, and application needs. The available solution depends on the technical details and production feasibility.
Before placing an order for Trinocular Stereo Microscopes with Focusing Mechanism, I recommend checking the following points:
What type of sample will be inspected?
What is the approximate sample size?
How small are the details that must be observed?
Is direct binocular viewing required?
Is a camera or monitor needed?
Will the operator use soldering tools or tweezers?
What working distance is comfortable for the task?
Is adjustable illumination necessary?
Will the microscope be used for long inspection sessions?
Does the stand need to support large or heavy samples?
Are images or videos required for records or training?
What accessories should be included?
What is the delivery destination and required schedule?
Are specific certification or documentation requirements applicable?
This checklist helps both the buyer and supplier understand the real application. It also reduces the risk of selecting a microscope based only on a product title without considering the working conditions.
Our Trinocular Stereo Microscopes with Focusing Mechanism are designed for users who need clear stereo observation, stable focusing, and flexible camera imaging. The binocular viewing system supports comfortable direct inspection, while the trinocular port makes it possible to connect a camera for live display, image capture, recording, and training.
These microscopes can support electronics assembly, PCB inspection, soldering, jewelry checking, precision machinery, medical equipment inspection, education, laboratories, repair work, product development, and quality control. Their actual performance depends on the optical configuration, magnification, working distance, lighting, stand, camera, and sample.
At Ningbo Huaguang Precision Instrument Co., Ltd., we focus on practical product selection, stable quality, careful inspection, suitable packaging, and clear customer communication. We check the microscope before shipment and arrange delivery according to the agreed configuration and logistics requirements.
If you are looking for a trinocular stereo microscope with a focusing mechanism, please share your application, sample details, required magnification, camera needs, and quantity with us. We can review the working conditions and recommend a suitable configuration for your inspection process.
The general explanations of stereo microscopy, binocular viewing, magnification, working distance, field of view, camera imaging, and microscope selection are based on technical information commonly provided by established microscopy manufacturers and optical education resources, including Leica Microsystems and Evident Scientific. Product-specific specifications, camera compatibility, certification documents, and delivery details should be confirmed with Ningbo Huaguang Precision Instrument Co., Ltd. before purchase.
