High Quality HST-3CB 20X/40X Binocular Stereo Microscope for Precision Inspection
When I need to inspect a small component, a fine surface, or a tiny assembly detail, I do not simply want to make the object look bigger. I want to see the shape clearly, understand the position of each part, and keep the observation process comfortable. That is the practical reason we developed and supply the High Quality HST-3CB 20X/40X Binocular Stereo Microscope.
This Binocular Stereo Microscope is designed for detailed optical observation where both magnification and three-dimensional viewing matter. With its 20X/40X configuration, it can support closer inspection of small objects and fine surface features. The binocular viewing arrangement also makes it suitable for repeated observation in workshops, laboratories, schools, repair areas, electronics assembly, Jewelry Inspection, and quality control.
At Ningbo Huaguang Precision Instrument Co., Ltd., we work with educational microscopes, Industrial Inspection microscopes, professional jewelry inspection microscopes, optical components, and precision injection molding. Our products are exported to more than 20 countries and regions, including America, Brazil, Germany, the Netherlands, and Japan.
I know buyers usually have more questions than “What is the magnification?” They want to know whether the microscope is comfortable to use, what industries it can serve, how it is checked before shipment, how long production may take, and how safely it can be delivered overseas. So, instead of only listing specifications, I want to explain how I look at this microscope from a real working point of view.
A stereo microscope uses two optical paths to create a three-dimensional view of a solid object. This is one of its biggest differences from a conventional compound microscope. Evident describes stereo microscopes as systems that provide three-dimensional observation at relatively low magnification and notes their use in electronics, metals, production, assembly, and quality control.
For me, this matters because many industrial parts are not flat. A connector has edges. A mechanical part has holes and steps. A jewelry piece has curves and raised surfaces. A circuit board has components mounted at different heights.
If I only need to look at a flat specimen, many microscope types can do the job. But when I need to understand the shape of a real object while inspecting or handling it, stereo observation becomes much more practical.
The HST-3CB 20X/40X Binocular Stereo Microscope is intended for this kind of work. The 20X/40X configuration gives users two magnification levels to choose from according to the inspection requirement. Lower magnification can help maintain a broader view, while higher magnification can make smaller details easier to examine.
There is an important point here: higher magnification is not automatically better. Leica explains that magnification, field of view, working distance, and depth of field need to be considered together when selecting a stereo microscope.
| Inspection Need | What I Look For | Why Stereo Observation Helps |
|---|---|---|
| Small component inspection | Edges, shape, surface details | Provides magnified three-dimensional observation |
| Electronics assembly | Components, solder areas, connectors | Helps identify small features during inspection |
| Jewelry inspection | Surface finish, setting, small marks | Supports natural viewing of three-dimensional objects |
| Mechanical parts | Grooves, holes, edges and surfaces | Depth information is useful during observation |
| Quality control | Appearance and assembly condition | Supports repeated visual checking |
Source note: The technical description of stereo microscopy and its industrial applications is based on Evident's stereo microscope information. Exact performance depends on the actual microscope configuration and sample.
When customers see “20X/40X,” they often assume the microscope simply makes everything twenty or forty times larger. In practice, microscope magnification is a little more complicated.
For a stereo microscope, the final visual magnification can depend on the objective, zoom optics, and eyepieces. Leica explains that total visual magnification is determined by the combination of these optical elements rather than by one number alone.
For this reason, I recommend treating the 20X and 40X figures as part of the optical configuration rather than using them as the only measure of microscope performance.
The 20X setting can be useful when I need a reasonably detailed view while still keeping more of the sample visible. This can make it easier to locate a feature before moving to a closer inspection.
For electronics, for example, I may first want to understand where a component sits on a circuit board. A wider observation area can make positioning easier than immediately starting at the highest magnification.
The 40X setting is more suitable when I need to examine finer visible details. It can help with small edges, surface marks, solder areas, jewelry details, and other features that are difficult to inspect with the naked eye.
However, increasing magnification generally reduces the field of view and can reduce working distance. Leica specifically highlights this relationship when explaining stereo microscope selection.
That is why I prefer having more than one useful observation level rather than simply chasing the largest possible number.
| Factor | 20X Observation | 40X Observation |
|---|---|---|
| Detail visibility | Suitable for general detailed inspection | More suitable for finer visible features |
| Observation area | Generally broader | Generally narrower |
| Part positioning | Convenient for locating areas of interest | Better after the target area has been located |
| Small surface details | Suitable for routine checking | Useful when closer inspection is required |
| Manual operation | Often easier when a broader view is useful | Requires more precise positioning |
Source note: The relationship between magnification, field of view, and working distance follows general stereo microscope optical principles described by Leica Microsystems. This table is an application-oriented comparison, not a claimed laboratory measurement for the HST-3CB.

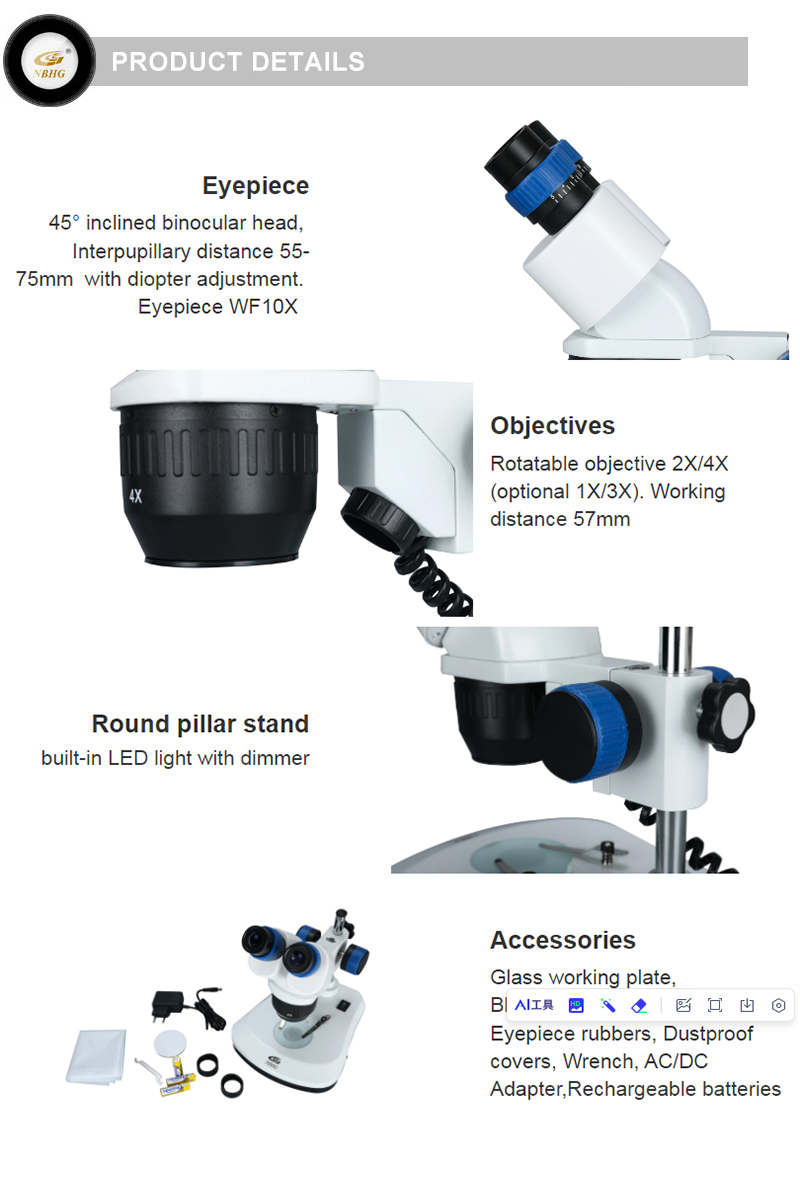

The binocular structure allows the operator to observe through both eyes. I find this particularly useful for work that requires repeated observation because the operator is not forced to rely on one viewing path.
For students, technicians, inspectors, and assembly workers, a straightforward binocular optical system can also make the microscope easier to understand and operate.
The 20X/40X configuration provides two practical observation levels. Instead of staying at one magnification for every task, the user can select the level that better matches the size of the detail being inspected.
When I inspect a larger component, I may start with the lower setting. Once I find the area that needs attention, I can move to the higher setting for a closer look.
One of the biggest advantages of a stereo microscope is the ability to observe solid objects with a sense of depth. This is useful for parts with raised areas, curved surfaces, holes, grooves, and different height levels.
That makes a 20X/40X Binocular Stereo Microscope especially practical for inspection work where the operator also needs to handle the sample.
Stable focusing is something I consider very important. A microscope may have a good optical system, but if the focusing mechanism feels unstable, the user can become tired quickly during repeated inspection.
Before delivery, we check focusing and mechanical operation as part of our overall product inspection process.
This microscope is not limited to laboratory demonstrations. Its application range includes electronics, jewelry, precision machinery, medical equipment manufacturing, education, repair, laboratories, product development, and quality control.
The exact suitability depends on the sample size, required detail, lighting, accessories, and working environment. I always recommend confirming these factors before placing a large order.
Electronics assembly is one of the areas where I see clear value in a binocular stereo microscope. Modern circuit boards can contain many small components in a relatively small space.
During inspection, an operator may need to check component placement, solder areas, connectors, wires, board surfaces, or assembly conditions. A stereo microscope can make these details easier to see while maintaining a natural view of the board.
Evident specifically lists electronics and PCB inspection among Stereo Microscope Applications and notes that stereo systems can support defect checks, component placement inspection, solder joint inspection, and rework.
Jewelry is another good application because the object itself is three-dimensional. A ring, pendant, stone setting, or metal surface may have small details that are hard to judge with the naked eye.
With a High Quality HST-3CB 20X/40X Binocular Stereo Microscope, the operator can examine surface finish, small marks, setting details, edges, and other visible features more closely.
Precision mechanical components often contain small grooves, holes, edges, threads, and surface features. A magnified stereo view helps operators inspect these features without losing the overall shape of the component.
This can be useful during incoming inspection, assembly, repair, sample evaluation, and final quality checks.
Medical equipment production can involve small components that need careful visual inspection during assembly. Stereo microscopes are used in medical device manufacturing because they combine magnified viewing with space for manual work.
Leica, for example, identifies medical device manufacturing as an industrial stereo Microscope Application and highlights the importance of accessible working space during assembly and rework.
For schools and training centers, a binocular stereo microscope can provide a simple way to teach students how to observe solid objects.
Instead of requiring complicated sample preparation, teachers can use suitable objects such as plant materials, insects, small mechanical parts, electronic components, or other solid specimens.
Repair technicians often need to find a problem before deciding how to fix it. A microscope provides a closer view of the component and can help identify small visible defects.
For electronics repair, watch repair, precision component repair, and similar work, binocular stereo observation can be particularly convenient because the operator needs to work directly with the sample.
Quality control is not always about complicated measurement. Sometimes the first step is simply seeing whether a part looks right.
A stereo microscope can support visual checks for scratches, surface defects, assembly conditions, component placement, edges, and other visible features. The final inspection method should always be selected according to the product's quality requirements.
| Industry | Common Inspection Target | Typical Reason for Using Stereo Microscopy |
|---|---|---|
| Electronics | PCB, connectors, components | Detailed viewing and rework support |
| Jewelry | Settings, surfaces, edges | Three-dimensional inspection of small objects |
| Precision machinery | Small mechanical parts | Closer observation of shape and surface |
| Medical equipment | Small assembled components | Inspection during assembly and production |
| Education | Solid specimens | Simple three-dimensional observation |
| Repair | Small damaged components | Closer view before and during repair |
Source note: Industry applications are based on application information published by Evident and Leica Microsystems for stereo microscopy. Actual application suitability depends on the sample and final configuration.
I often tell buyers that selecting a microscope should start with the workpiece, not the catalog number. The right question is not “How high is the magnification?” but “What do I need to see, and what do I need to do while looking at it?”

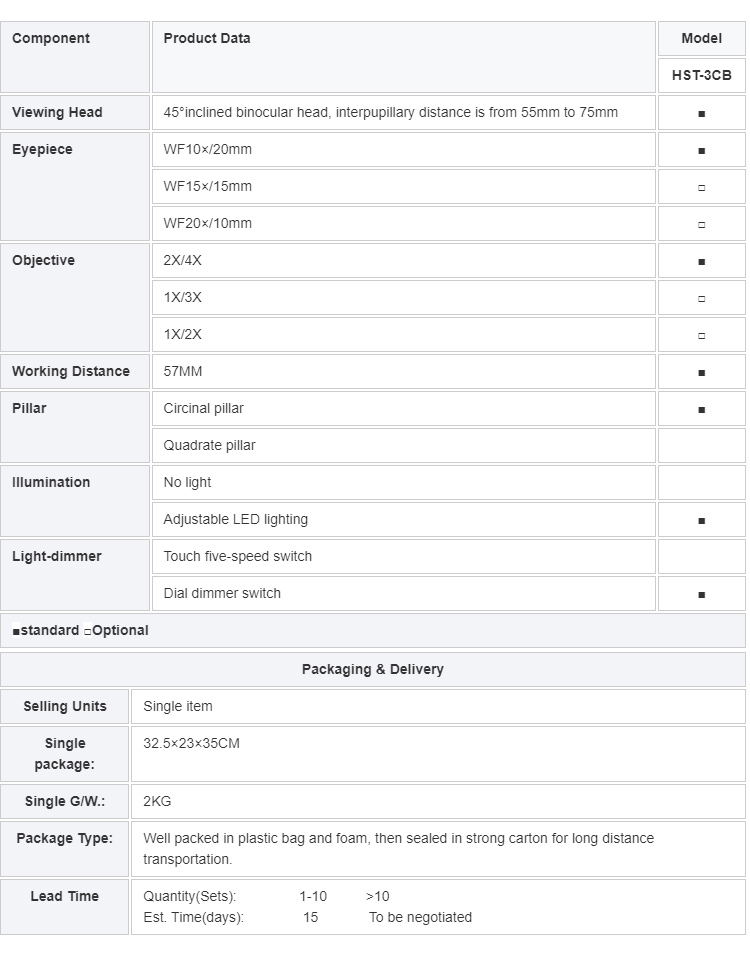

The HST-3CB configuration provides 20X/40X observation. Buyers should consider whether they normally need an overview, a detailed inspection, or both.
Field of view means the area visible through the microscope. Leica points out that a larger field of view can make it easier to maintain orientation on the sample.
This becomes important when the object is larger than the area being inspected. If the field of view is too small, the operator may spend more time moving the sample just to find the correct area.
Working distance is the space between the objective and the sample when the image is in focus. For inspection and rework, more space can make it easier to handle tools or move the sample.
Leica specifically notes that working distance directly affects the usability of a stereo microscope for inspection, rework, and quality control.
Depth of field describes how much height or depth of a sample can remain acceptably focused. This is useful when the object is not completely flat.
In general optical systems, magnification, numerical aperture, and depth of field are closely related. Evident's technical material shows that depth of field tends to decrease as magnification and numerical aperture increase.
For this reason, I would not judge a microscope only by its highest magnification. A practical inspection system needs a sensible balance between detail and usable working conditions.
| Selection Factor | Question I Ask | Why It Matters |
|---|---|---|
| Magnification | How small is the detail? | Determines the level of enlargement required |
| Field of view | How much of the sample must I see? | Helps with positioning and orientation |
| Working distance | Do I need space for tools? | Affects handling and rework |
| Depth of field | Is the sample flat or uneven? | Affects how much of the object stays in focus |
| Binocular viewing | Will the microscope be used repeatedly? | Supports direct two-eye observation |
Source note: Technical definitions and relationships are summarized from Leica Microsystems and Evident Scientific microscopy resources. These principles should be used as selection guidance rather than as claimed HST-3CB specifications.
From our side, manufacturing does not finish when the microscope looks complete. We still need to check whether the product works as expected and whether the delivered configuration matches the customer's order.
First, we confirm the microscope model, optical configuration, quantity, accessories, destination, packaging requirements, and any special customer requirements.
This step is especially important for international orders. A customer may need a specific accessory arrangement or documentation package depending on the market and application.
The optical components are assembled according to the required configuration. The binocular viewing structure and focusing mechanism are checked during the assembly process.
I prefer a controlled assembly process because small optical instruments are sensitive to incorrect installation, loose mechanical parts, and poor handling.
We check the focusing function and mechanical operation. The microscope should feel stable during normal use, and the operator should be able to make the required adjustments without unnecessary difficulty.
Optical performance is checked before shipment. The purpose is to identify problems before the microscope reaches the customer.
We also check the accessories and overall appearance so that the delivered product matches the agreed order.
After inspection, the microscope is protected using cushioning and dust-proof materials. It is placed in an individual box and then packed into reinforced export cartons.
This is especially important for overseas orders. The product may be handled several times before reaching the final customer, so packaging needs to be considered part of the product delivery process.
For buyers purchasing a HST-3CB 20X/40X Binocular Stereo Microscope, delivery time can depend on several factors. I do not like giving an artificial fixed lead time before knowing the order details.
The microscope model, order quantity, accessory requirements, component availability, customization, and current production schedule can all affect the actual production cycle.
| Order Situation | Factors to Confirm | Production Consideration |
|---|---|---|
| Standard order | Model, quantity, accessories | Usually easier to arrange |
| Small sample order | Configuration and availability | Depends on current stock and preparation |
| Customized order | Optical and accessory requirements | May require additional preparation |
| Large quantity order | Quantity and component supply | Requires production scheduling |
For a quotation, I recommend providing the application, required quantity, destination country, required configuration, and any special accessory needs. This gives our team a much clearer picture of the actual order.
Delivery includes the agreed microscope configuration, accessories, user documents, and applicable inspection or certification documents according to the order.
Payment is arranged according to the individual order agreement. A common international arrangement is a deposit before production followed by the balance before shipment. Exact payment terms should be confirmed with our sales team before the order is finalized.
Depending on the destination and urgency, transportation can be arranged by air freight, sea freight, express delivery, or another suitable logistics method.
We understand that overseas transportation can be very different from local delivery. For this reason, cushioning, dust protection, individual packaging, and reinforced export cartons are used to reduce transportation risks.
When I compare microscope suppliers, I think the company behind the product matters almost as much as the product itself.
Ningbo Huaguang Precision Instrument Co., Ltd. is based in Haishu District, Ningbo, an area with convenient transportation and a strong manufacturing environment.
Our business covers educational microscopes, industrial inspection microscopes, professional jewelry inspection microscopes, optical components, and precision injection molding. This combination gives us experience across both optical products and precision manufacturing.
Our products have been exported to more than 20 countries and regions, including America, Brazil, Germany, the Netherlands, and Japan. This means we understand that an international buyer may need more than a microscope specification sheet.
Configuration confirmation, documentation, packaging, shipping arrangements, and after-sales communication all matter.
Our company has been certified to the ISO9001 quality management system. According to the company information supplied for this product range, our products have also been certified to CE and RoHS requirements. The applicable certificate and scope should be confirmed for the specific product and shipment.
We continue to work on microscope products and related precision instruments. Our company credo is “Nothing is perfect only better and better.” I see this as a reminder that product development is an ongoing process.
Small improvements in optical design, mechanical stability, assembly, packaging, and customer communication can make a real difference over time.
A microscope is not normally a one-time-use product. Customers may use it for years, so clear instructions and responsive communication are important.
Our goal is to provide stable product quality and practical after-sales service rather than simply completing the shipment.
It is designed for detailed observation of solid objects and can be used in electronics assembly, jewelry inspection, precision machinery, medical equipment manufacturing, education, laboratories, repair, product development, and quality control.
It refers to the 20X and 40X magnification configuration of the microscope. The exact optical magnification seen by the user depends on the complete optical system, including the relevant objective and eyepiece configuration.
Yes. Binocular Stereo Microscopes are widely used for electronics and PCB inspection. They can help users observe components, solder areas, connectors, and other small features while maintaining a three-dimensional view of the board.
Yes. Jewelry is a suitable type of application for stereo microscopy because many jewelry parts have small three-dimensional details. The microscope can support closer observation of surfaces, settings, edges, and visible finishing details.
No. The right magnification depends on the inspection task. A higher magnification can reveal finer details, but the field of view and working conditions can change as magnification increases. Leica recommends considering magnification together with field of view, working distance, and depth of field.
I recommend providing the application, sample type, required magnification, quantity, destination country, required accessories, and any special requirements. If possible, photos or sample information can also help us understand the application more clearly.
The production cycle depends on the model, optical configuration, accessories, order quantity, component availability, and customization requirements. Standard orders can generally be arranged more simply, while customized orders may require additional production time.
We use cushioning and dust-proof protection, an individual box, and reinforced export cartons. The purpose is to reduce transportation risks during international shipping.
The delivery package includes the agreed microscope configuration, accessories, user documents, and applicable inspection or certification documents according to the order.
Yes. Our products have been exported to more than 20 countries and regions. We can discuss suitable transportation methods, packaging requirements, payment terms, and documentation according to the destination and order.
For me, the value of a microscope is not determined by one impressive number on a specification sheet. A useful microscope should help the operator see the right details, work comfortably, handle the sample, and complete repeated inspection without unnecessary difficulty.
The High Quality HST-3CB 20X/40X Binocular Stereo Microscope is designed around this practical idea. Its binocular optical structure supports comfortable direct observation, while the 20X/40X configuration provides different levels of magnified viewing for detailed inspection.
It can be used across electronics, jewelry, precision machinery, medical equipment, education, laboratories, repair, product development, and quality control. For buyers looking for a 20X/40X Binocular Stereo Microscope, HST-3CB Stereo Microscope, or High Quality Binocular Stereo Microscope, the most important step is to match the optical configuration with the real application.
At Ningbo Huaguang Precision Instrument Co., Ltd., we support customers from product selection through production, inspection, packaging, and delivery. We check optical performance, focusing, mechanical operation, accessories, appearance, and overall assembly quality before shipment.
Our products serve customers in more than 20 countries and regions, and we continue to improve our optical instruments according to practical application needs. If you know what you need to inspect, how large the sample is, and what level of detail you need to see, we can use that information to discuss a suitable microscope configuration.
In the end, choosing a stereo microscope is really about matching the instrument to the work. Get that part right, and the microscope becomes a useful working tool rather than simply another piece of equipment on the bench.
