When I design or recommend a stereo Microscope for daily inspection work, I look beyond magnification alone. A microscope may offer a large image, but if the viewing angle is uncomfortable, the focusing is unstable, or the working space is too small, the user will quickly feel tired. This is why our 45 Degrees Inclined Binocular Zoom Stereo Microscope is designed around practical observation, comfortable operation, and reliable inspection.

Our microscope combines a binocular viewing head, a 45-degree inclined observation angle, and a zoom optical system. This combination allows users to observe solid objects in three dimensions, change magnification smoothly, and work for longer periods with less neck movement. It is suitable for electronics assembly, PCB inspection, jewelry checking, precision machinery, education, laboratories, repair work, and quality control.

At Ningbo Huaguang Precision Instrument Co., Ltd., we focus on microscopes and optical components for different working environments. Our product range includes educational microscopes, Industrial Inspection microscopes, professional Jewelry Inspection microscopes, optical components, and precision injection molding products. We export to more than 20 countries and regions, including America, Brazil, Germany, the Netherlands, and Japan.

We understand that buyers of industrial microscopes usually have practical questions. They want to know whether the image is clear, whether the microscope is comfortable to use, whether the stand is stable, whether the optical configuration matches the application, and whether the supplier can provide dependable delivery and after-sales support. This page explains how we approach these points.

1. Why I Recommend a 45-Degree Inclined Binocular Zoom Stereo Microscope

A stereo microscope is different from a standard compound microscope. A compound microscope is normally used to observe very small transparent or prepared samples at high magnification. A stereo microscope is mainly used to inspect solid objects, components, surfaces, edges, and structures that need to be handled or viewed from different angles.

With our 45 Degrees Inclined Binocular Zoom Stereo Microscope, the user looks through two eyepieces instead of one. Each eye receives a slightly different optical view. The brain combines these views into a natural three-dimensional image. This makes it easier to understand the height, shape, depth, and position of an object.

The 45-degree inclined head is another important part of the design. A completely vertical viewing position may force the user to bend the neck or lean forward, especially during long inspection sessions. An inclined viewing head places the eyepieces in a more comfortable position. The exact comfort level still depends on the operator’s height, chair, table, stand, and working distance, but the inclined design gives users more flexibility.

The zoom function allows the user to start with a wider view and then move toward a closer view without changing the objective lens manually. This is useful when checking a complete PCB, locating a small component, inspecting a solder joint, or examining a detail on a jewelry surface.

I normally suggest this type of microscope when the application needs three things at the same time:

• A natural three-dimensional image of solid objects.

• Flexible magnification for both general viewing and detailed inspection.

• A comfortable viewing position for repeated or extended work.

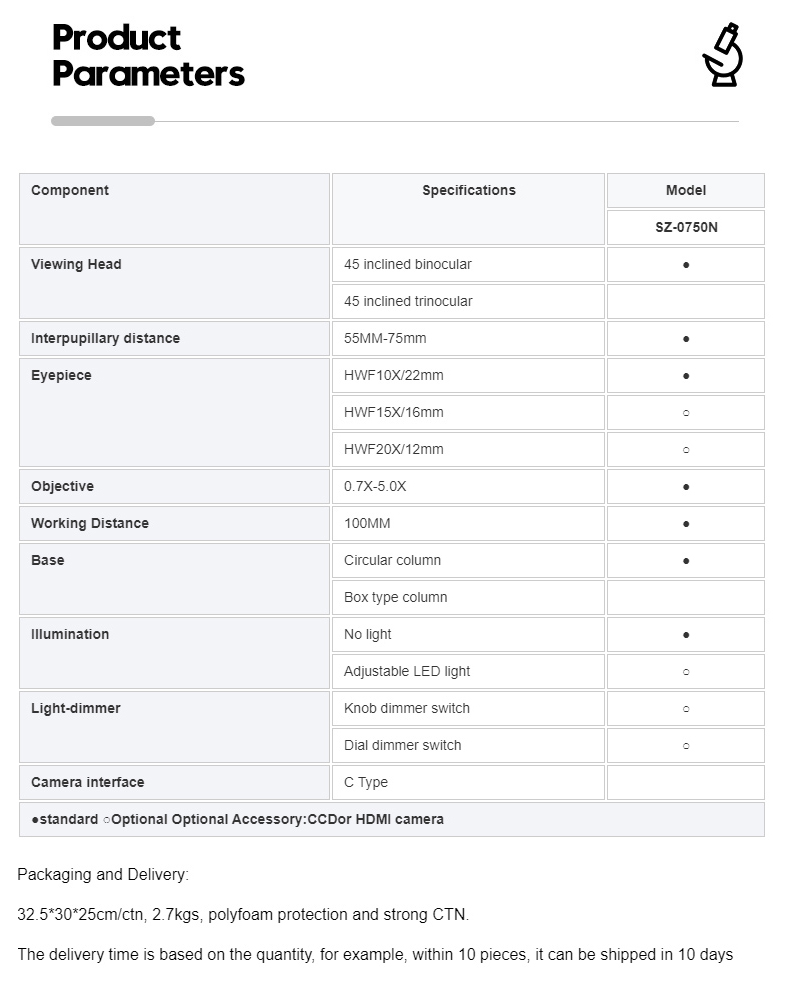

The exact zoom range, eyepiece specification, working distance, illumination, and stand configuration should be confirmed according to the selected Huaguang model. We do not treat every stereo microscope as having the same optical performance. Different objective lenses and eyepieces can change the total magnification, field of view, and working distance.

2. How the Binocular Zoom Stereo Microscope Works

Three-dimensional observation

The basic working principle of a stereo microscope is based on two optical paths. The left and right viewing channels observe the object from slightly different positions. These two images create a stereo effect, allowing the user to see the object with depth.

This is especially helpful when the object is not flat. For example, a technician checking a connector may need to see the height of the pins, the edge of the housing, and the position of the contact area. A jewelry inspector may need to observe the shape of a stone setting, the edge of a metal surface, or a small scratch. A student may want to examine a leaf, insect, rock, or small mechanical part. Stereo viewing makes these tasks more natural.

Zoom optical system

A zoom optical system changes magnification through a controlled movement of internal lenses. Instead of removing and replacing objectives, the user turns the zoom control. The image becomes larger or smaller while the object remains on the stage.

In actual inspection work, a lower magnification is useful for locating the target and seeing its surrounding area. A higher magnification is useful for checking small defects, fine edges, solder joints, surface marks, or tiny mechanical details. A useful microscope should make it easy to move between these two views.

Magnification is not the only factor that determines image quality. I also pay attention to optical clarity, contrast, field of view, working distance, focusing stability, illumination, and the quality of the mechanical structure.

Working distance and field of view

Working distance is the space between the front of the objective lens and the object being observed. A longer working distance gives the user more room to place tools, tweezers, soldering equipment, or other accessories beneath the lens.

Field of view is the area visible through the microscope at a particular magnification. At lower magnification, the field of view is usually wider. At higher magnification, the visible area becomes smaller but more detail can be observed.

These two factors should be considered together. A microscope with very high magnification but very little working space may not be convenient for assembly or repair. A microscope with a wider field of view may be more useful when the operator needs to locate a component quickly.

Typical industry reference data

The following table shows examples from published stereo microscope specifications. These figures are not claimed as the fixed specifications of every Huaguang model. They are included to explain how different optical configurations can affect microscope performance.

These examples show why I ask customers to confirm the complete optical combination instead of looking only at one number in a product title. The same zoom objective may produce different total magnification and field of view when paired with different eyepieces or auxiliary lenses.

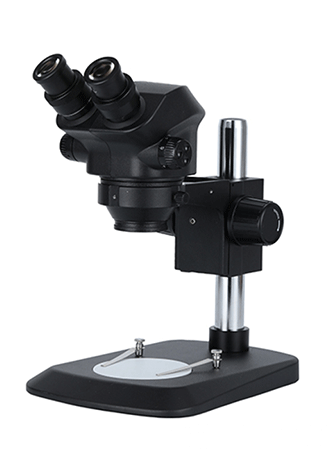

3. Main Features of Our 45 Degrees Inclined Binocular Zoom Stereo Microscope

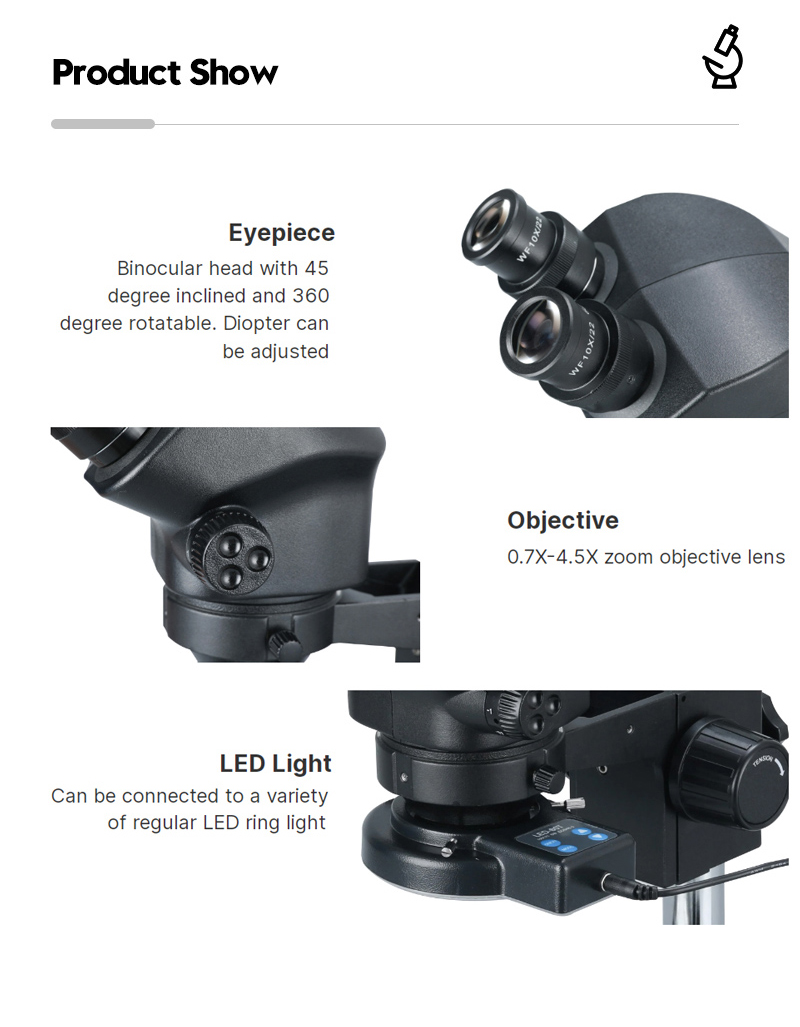

45-degree inclined binocular viewing head

The inclined binocular head is designed for comfortable observation. Users can adjust their seating and viewing position more naturally than with a straight vertical tube. This is useful in laboratories, assembly lines, repair benches, and inspection stations where the operator may work for several hours.

Binocular viewing also reduces the need to close one eye. With suitable interpupillary and diopter adjustment, the user can set the microscope to match personal eyesight and eye spacing. The correct adjustment is important because an optical system that is not properly aligned may cause discomfort or make the image appear unclear.

Flexible zoom observation

The zoom mechanism supports quick movement between a broad view and a detailed view. When I inspect a large component, I usually begin at a lower magnification to understand the overall structure. I then increase magnification only where more detail is needed.

This approach saves time and avoids unnecessary lens changes. It is particularly useful for PCB inspection, soldering work, jewelry checking, small mechanical parts, and product sampling.

Clear stereo image

A good stereo microscope should provide a clear image with suitable contrast and stable focus. The optical system should help the user distinguish edges, surface marks, holes, pins, wires, and other small features.

Image quality depends on the optical design, lens coating, alignment, eyepiece quality, illumination, and cleanliness. We therefore pay attention to both optical components and mechanical assembly during production and inspection.

Practical focusing operation

Stable focusing is important in real production environments. When the operator turns the focus knob, the microscope should move smoothly without sudden jumps. The focusing structure should also hold the selected position when the user releases the knob.

For different samples, the required focusing position may change. Thick components, uneven surfaces, jewelry pieces, and mechanical parts may not have the same height. A suitable focusing range and stable stand help the operator work more efficiently.

Adaptable illumination

Lighting can change the way a sample looks. A shiny metal surface may create strong reflections. A dark PCB may need more direct light. A transparent or semi-transparent sample may benefit from light from below. For this reason, illumination should be selected according to the object and inspection task.

Depending on the model, stereo microscopes may use incident light, transmitted light, ring light, or other lighting accessories. Some published microscope configurations provide upper and lower LED illumination, while others use external lighting. We confirm the actual lighting arrangement before order production.

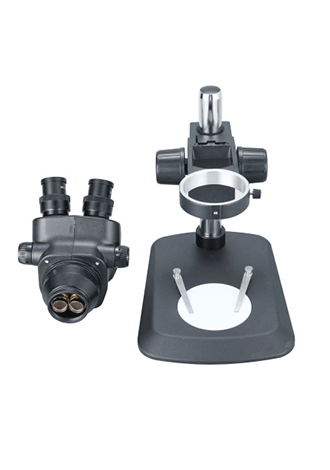

Stable mechanical support

The microscope head is only one part of the complete inspection system. A stable stand, suitable focusing holder, stage, and base are also important. If the base moves when the operator touches the sample, the image may shake and the inspection result may become less reliable.

For industrial users, I recommend choosing the stand according to the size and weight of the sample, the required working distance, and whether the operator needs room for tools. A large base or boom stand may be useful for larger components, while a compact stand may be more suitable for limited bench space.

4. Technical Advantages in Real Inspection Work

Comfort during long working hours

Comfort is not just a nice extra. It affects how consistently an operator can work. When the viewing head is positioned at a suitable angle, the operator may not need to bend the neck as much. The 45-degree design is therefore useful for repeated inspection tasks.

However, the microscope should still be installed correctly. The table height, chair height, monitor position if a camera is used, and sample location all affect posture. I usually advise customers to set the microscope so the shoulders stay relaxed and the operator can place both hands comfortably near the sample.

Better control of inspection detail

With a zoom microscope, the user can move from general observation to detailed inspection without losing the sample position. This is helpful when the object contains many small features.

For example, when checking a PCB, the operator may first inspect the whole board, then zoom in on a connector, solder joint, IC pin, or damaged area. In jewelry inspection, the user may first check the overall setting and then inspect a stone edge, engraving, polish mark, or small surface defect.

Useful depth perception

Three-dimensional viewing helps users understand the relationship between parts. This is useful for assembly, repair, dissection, education, and quality control. It can be easier to judge whether a pin is bent, whether a surface is raised, or whether a small component is correctly positioned.

Support for hands-on work

A stereo microscope is often used while the operator is holding tweezers, a soldering iron, a small screwdriver, or another tool. The user needs enough working space beneath the lens. The microscope should therefore be selected based on the actual task rather than magnification alone.

Flexible configuration

Different users may need different eyepieces, auxiliary objectives, stands, lighting systems, camera adapters, or stage plates. We can discuss the application before confirming the configuration. This helps avoid buying a microscope that looks suitable on paper but is inconvenient in actual use.

5. Comparison with Other Microscope Types

Customers sometimes ask whether they should choose a stereo microscope, a Digital Microscope, or a compound microscope. My answer is that the correct choice depends on the sample and the working method.

The comparison is based on the general working principles of these instruments. Actual performance depends on the model, optical system, lighting, and accessories. A stereo microscope is usually a practical choice when the user needs to observe a solid object while also manipulating it.

Magnification is not the whole story

A common mistake is to choose the microscope with the highest advertised magnification. In many industrial applications, a wider field of view and comfortable working distance are more useful than extreme magnification.

If the field of view is too small, the operator may spend more time moving the sample. If the working distance is too short, there may not be enough room for tools. If the image becomes dark or unstable at high magnification, the larger number may not provide better practical results.

For this reason, we discuss the sample size, inspection detail, operator habits, lighting, and working space before suggesting a configuration.

6. Applications and Industries

Electronics assembly and PCB inspection

Our 45 Degrees Inclined Binocular Zoom Stereo Microscope is suitable for checking circuit boards, connectors, wires, solder joints, pins, switches, and small electronic components. The binocular stereo view helps users observe the height and position of parts, while the zoom function allows closer inspection of selected areas.

It can be used during assembly, rework, repair, sampling inspection, and final quality checking. The exact lighting should be selected according to whether the PCB surface is dark, reflective, densely populated, or covered with protective coating.

Jewelry inspection

Jewelry work often requires careful observation of small surfaces and fine details. A stereo microscope can help inspect stone settings, metal edges, engraving, polishing marks, small scratches, and assembly details.

The three-dimensional view is useful because jewelry is not a flat sample. The operator may need to see the relationship between a stone, claw, setting, and metal surface. Comfortable binocular viewing is also valuable when inspection is repeated throughout the day.

Precision machinery

Small mechanical components may contain holes, grooves, threads, edges, springs, gears, and machined surfaces. A stereo microscope helps users inspect these features without placing the sample under a compound microscope.

It can support incoming inspection, process checking, repair, assembly, and final quality control. The stand and working distance should be selected according to the size of the component and the tools used by the operator.

Medical equipment and laboratory work

In medical equipment production and laboratory environments, stereo microscopes may be used to inspect small assemblies, tubes, connectors, instruments, and solid samples. The exact suitability depends on the application, cleanliness requirements, sample type, and any relevant internal procedures.

For regulated or specialized medical applications, we recommend confirming the complete equipment requirements and applicable documentation before purchase.

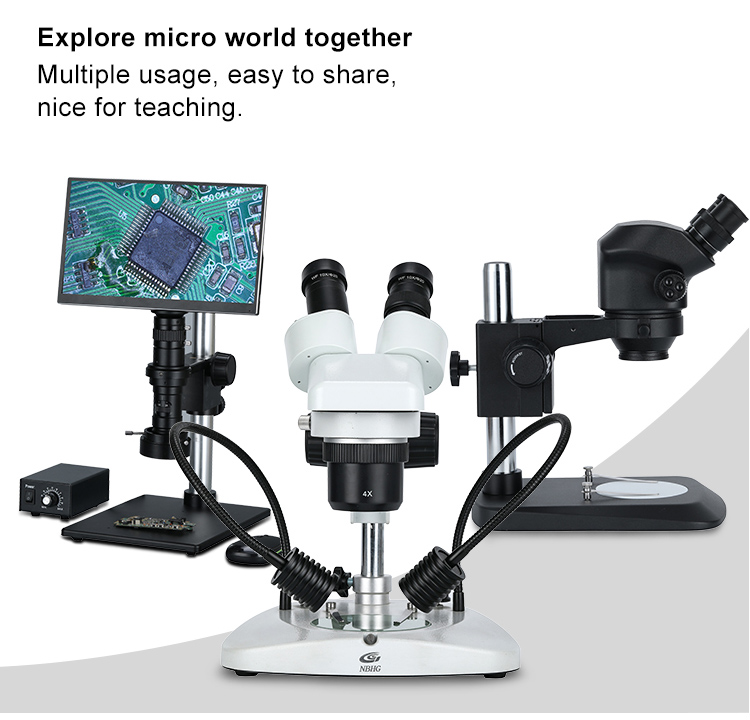

Education and training

A Binocular Stereo Microscope is also useful in schools, colleges, training centers, and science laboratories. Students can observe leaves, insects, rocks, small tools, electronic parts, and other solid objects.

The stereo image is easy to understand because it looks more like normal vision. The teacher can also demonstrate how to adjust focus, change magnification, control light, and handle samples carefully.

Repair and maintenance

Repair technicians often need both hands while observing a small object. They may work on mobile phone components, circuit boards, connectors, watches, small instruments, or precision mechanical parts.

The combination of binocular viewing, zoom control, and a suitable working distance can make this type of work more manageable. The microscope does not replace good repair skills, but it helps the technician see the working area more clearly.

7. How We Manufacture, Check, Pack, and Deliver the Microscope

Production planning

At Ningbo Huaguang Precision Instrument Co., Ltd., the production cycle depends on the microscope model, optical configuration, accessories, order quantity, and customization requirements. Standard models can usually be arranged faster. Customized orders may need additional time for optical matching, mechanical preparation, accessory confirmation, and inspection.

Before production, we confirm the product name, viewing head, optical configuration, stand, illumination, accessories, quantity, destination, and documentation requirements. Clear confirmation at this stage helps reduce mistakes later.

Optical and mechanical assembly

A stereo microscope contains optical and mechanical parts that must work together. The optical components need suitable alignment. The focusing mechanism needs smooth movement. The viewing head should remain stable during use. The stand must support the head and sample properly.

We pay attention to assembly quality because even a good optical component cannot provide a satisfying result if the mechanical structure is loose or poorly adjusted.

Quality inspection before shipment

Before delivery, we check the agreed product configuration and inspect important areas such as:

• Optical image clarity and basic viewing performance.

• Zoom and focusing operation.

• Binocular viewing adjustment.

• Mechanical stability and movement.

• Illumination operation when included.

• Accessories and user documents.

• Appearance and overall assembly quality.

• Packaging condition and protection.

The exact inspection items may change according to the model and customer requirements. If a customer needs a special inspection report, label, plug, accessory, or certification document, we confirm it before shipment.

Delivery contents

Delivery normally includes the agreed microscope configuration, accessories, user documents, and applicable inspection or certification documents. The exact packing list depends on the order.

We do not assume that every microscope includes the same eyepieces, lighting system, stage, camera adapter, or auxiliary lens. These details should be written clearly in the quotation and order confirmation.

Payment and transportation

Payment is arranged according to the order agreement. A common arrangement is a deposit with the balance paid before shipment, but the final terms depend on the order, customer relationship, and contract.

Transportation can be handled by air freight, sea freight, express delivery, or another suitable logistics method. The choice depends on the destination, order quantity, delivery time, package size, and budget.

Export packaging

Microscopes contain optical parts and precision mechanical structures, so packaging needs careful attention. We use cushioning and dust-proof materials to protect the microscope. The product is packed in an individual box and then placed in reinforced export cartons to reduce transportation risks.

For larger or more sensitive orders, the packing method may be adjusted according to the transport route and customer requirements. We also confirm the shipping marks, labels, documents, and carton information before dispatch.

8. Why Choose Ningbo Huaguang Precision Instrument Co., Ltd.

Choosing a microscope supplier is not only about comparing product names. The supplier should understand the application, provide clear product information, communicate changes in time, and support the customer after delivery.

Our company is located in Haishu District, Ningbo, with convenient transportation and access to manufacturing resources. We are engaged in educational microscopes, industrial inspection microscopes, professional jewelry inspection microscopes, optical components, and precision injection molding.

Our products are exported to more than 20 countries and regions, including America, Brazil, Germany, the Netherlands, and Japan. These markets have different expectations for product configuration, packaging, communication, and delivery, so we pay attention to order details and customer requirements.

We have established an ISO9001 quality management system according to the company information provided. Our company information also states that products have CE and RoHS certifications. The applicable certificate, product scope, certificate number, and validity should be confirmed for the exact model and shipment.

Our company credo is: “Nothing is perfect only better and better.” We believe that product improvement comes from listening to users, checking real problems, and making practical changes. For microscope products, this may involve optical clarity, focusing feel, stand stability, packaging protection, accessory selection, or after-sales communication.

When a customer contacts us, we try to understand the following points before recommending a microscope:

• What object will be inspected?

• What is the approximate sample size?

• What level of detail must be observed?

• Will the operator use tools under the lens?

• Is binocular optical viewing required?

• Is a camera or screen needed?

• What lighting conditions are available?

• How many units are required?

• Is the order standard or customized?

• What destination and delivery schedule are expected?

This information helps us avoid recommending a microscope based only on a popular keyword. The correct configuration should match the real work.

Frequently Asked Questions

What is a 45 Degrees Inclined Binocular Zoom Stereo Microscope?

It is a stereo microscope with two viewing eyepieces, a 45-degree inclined viewing head, and a zoom optical system. It is designed for three-dimensional observation of solid objects and flexible magnified inspection.

Why is the viewing head inclined at 45 degrees?

The 45-degree angle provides a more comfortable viewing position for many users. It may reduce the need to bend the neck during repeated inspection, although the final comfort also depends on the table, chair, stand, and operator height.

Is this microscope suitable for PCB inspection?

Yes. It can be suitable for PCB assembly, solder joint checking, connector inspection, electronic component observation, repair, and quality control. The best optical and lighting configuration depends on the board size and inspection detail.

Can it be used for jewelry inspection?

Yes. Stereo observation is useful for checking jewelry surfaces, stone settings, metal edges, engraving, polishing marks, and small assembly details. The suitable magnification and lighting should be selected according to the jewelry type.

Does higher magnification always mean better inspection?

No. Higher magnification shows smaller details, but it also reduces the field of view and may reduce working space. A practical microscope should balance magnification, clarity, working distance, field of view, lighting, and operator comfort.

What is working distance?

Working distance is the space between the front of the objective lens and the observed object. More working distance can make it easier to use tweezers, soldering tools, or other equipment beneath the microscope.

Can the microscope be customized?

Depending on the model, customization may include eyepieces, auxiliary objectives, stand type, lighting, camera adapters, stage components, packaging, labels, and other accessories. We confirm the available options before quotation.

What is the production cycle?

The production cycle depends on the model, optical configuration, accessories, order quantity, and customization requirements. Standard models are usually easier to arrange, while customized orders may require additional time.

How do you check the microscope before shipment?

We check the agreed configuration, optical performance, focusing, mechanical operation, accessories, appearance, and packaging. Additional inspection documents can be discussed according to the order requirements.

How is the microscope packed?

The microscope is protected with cushioning and dust-proof materials, packed in an individual box, and then placed in reinforced export cartons. The packing method may be adjusted for special orders or transport conditions.

What payment terms do you accept?

Payment follows the order agreement. A common arrangement is a deposit and balance before shipment. The final terms are confirmed in the quotation and contract.

How can the microscope be transported?

We can arrange air freight, sea freight, express delivery, or another suitable logistics method according to the destination, quantity, delivery schedule, and customer requirements.

Conclusion

Our 45 Degrees Inclined Binocular Zoom Stereo Microscope is designed for users who need clear three-dimensional observation, flexible magnification, stable focusing, and a comfortable viewing position. It can support electronics inspection, PCB work, jewelry checking, precision machinery, education, laboratories, repair, and quality control.

I believe a good microscope should be easy to understand and practical to use. It should help the operator see the target clearly, keep the sample stable, work with suitable tools, and maintain a comfortable posture. It should also arrive with the agreed configuration, reliable packaging, and clear documentation.

At Ningbo Huaguang Precision Instrument Co., Ltd., we combine microscope production, optical component experience, quality management, export service, and customer communication to support different inspection requirements. If you are selecting a binocular zoom stereo microscope, we recommend confirming the sample, magnification, working distance, lighting, stand, accessories, quantity, and delivery requirements before placing the order.

For the exact specifications of the 45-degree inclined binocular zoom stereo microscope, please contact us with your application details. We can then help confirm a suitable configuration for your inspection work.

Reference Sources for Technical Comparison

• HOZAN L-46 Stereo Microscope specifications, including 45-degree binocular head, magnification, field of view, and working distance.

• Labtron LSM-B16 Stereo Microscope specifications, including inclined binocular head and zoom configuration.

• Euromex Z Series stereo microscope information, including 45-degree viewing head, zoom range, field of view, and working distance.

• BOECO stereo microscope catalog, including BSZ-405 optical and mechanical specifications.
