1W LED Light Biological Microscope with Low Price for Laboratory and Educational Use
When we talk about a biological Microscope, the first thing that comes to mind is usually magnification. But after years of working with optical instruments, we know that magnification is only one part of the picture. A microscope also needs suitable illumination, reliable optical components, stable focusing, comfortable observation, and a structure that can handle regular use.
Our 1W LED Light Biological Microscope with Low Price is designed around these practical needs. It is mainly used to observe cells, tissues, microorganisms, prepared specimens, and other biological samples. The 1W LED light source provides illumination for routine observation, while the biological microscope optical system helps users obtain a clear enlarged image of the specimen.
We designed this type of microscope with a simple idea: a laboratory or classroom microscope does not always need complicated functions. In many cases, users need a dependable instrument that is easy to operate, easy to maintain, and suitable for repeated daily observation.
That is where a Low Price Biological Microscope can make sense. A lower purchase cost does not have to mean giving up the basic functions needed for biological observation. What matters is whether the optical configuration, illumination system, focusing mechanism, mechanical structure, and quality inspection are properly matched to the intended application.
A biological microscope is an optical instrument used to enlarge specimens that are too small to be seen clearly with the naked eye. In a typical transmitted-light observation process, light passes through or illuminates the specimen from below, and the objective lens collects the light carrying information about the specimen. The optical system then forms a magnified image that can be viewed through the eyepiece.
Our 1W LED Light Biological Microscope with Low Price adds an LED illumination source to this basic optical structure. The 1W specification refers to the LED light source used for illumination. The purpose is straightforward: provide practical light for observing biological specimens while keeping the microscope suitable for educational, laboratory, and routine inspection environments.
For students, teachers, laboratory technicians, and routine users, the experience of using a microscope is often more important than having a long list of complicated specifications. The user needs to place the specimen correctly, select an appropriate objective, adjust the illumination, focus the image, and observe the details.
We therefore pay attention to the complete observation process rather than treating the LED light as an isolated component.
A biological microscope can be used for observing:
Cells and cell structures
Plant tissue sections
Animal tissue samples
Microorganisms
Prepared slides
Educational biological specimens
Routine laboratory samples
Other transparent or thin biological materials
The exact observation capability depends on the optical configuration, objectives, eyepieces, specimen preparation, illumination adjustment, and other microscope components. This is important when comparing different biological microscopes. A microscope should be selected according to the specimen and actual working conditions rather than simply choosing the highest number printed on the product page.
The working principle is easier to understand than it may first appear. In transmitted-light observation, the illumination system sends light toward the specimen. The light interacts with the sample and carries information about its structure. The objective lens collects this light and creates a magnified intermediate image. The eyepiece then magnifies that image again so the user can observe it comfortably.
The LED source is an important part of this process because the specimen must receive suitable illumination before the optical system can produce a useful image.
We often tell customers not to think of illumination and optics as two completely separate systems. They work together. Even a good objective cannot compensate completely for poor illumination or an unsuitable specimen. Nikon MicroscopyU explains that image quality and resolution are influenced by factors including numerical aperture, illumination wavelength, specimen contrast, and optical conditions.
The basic observation process can be understood in five steps:
LED illumination: The 1W LED source provides light for specimen observation.
Specimen interaction: Light passes through or interacts with the prepared biological sample.
Objective collection: The objective gathers light from the specimen and forms a magnified image.
Focusing: The focusing mechanism moves the optical system relative to the specimen to obtain a sharper image.
Eyepiece observation: The user observes the magnified image through the eyepiece.
In real laboratory work, the process also includes specimen preparation, positioning, illumination adjustment, objective selection, and focusing. These small steps have a large effect on the final observation experience.
This is one of the most common points we explain to new microscope buyers. More magnification does not automatically mean more detail.
Resolution refers to the ability of an optical system to distinguish two closely spaced details as separate features. Numerical aperture, or NA, is a key factor in microscope resolution. ZEISS explains that increasing numerical aperture generally improves the ability of an objective to resolve fine structures, while also affecting light-gathering ability.
In simple words, magnification makes the image bigger, while resolution determines how much useful detail can actually be seen.
That is why we recommend customers look at the complete optical configuration instead of choosing a microscope simply because it claims a very high magnification.

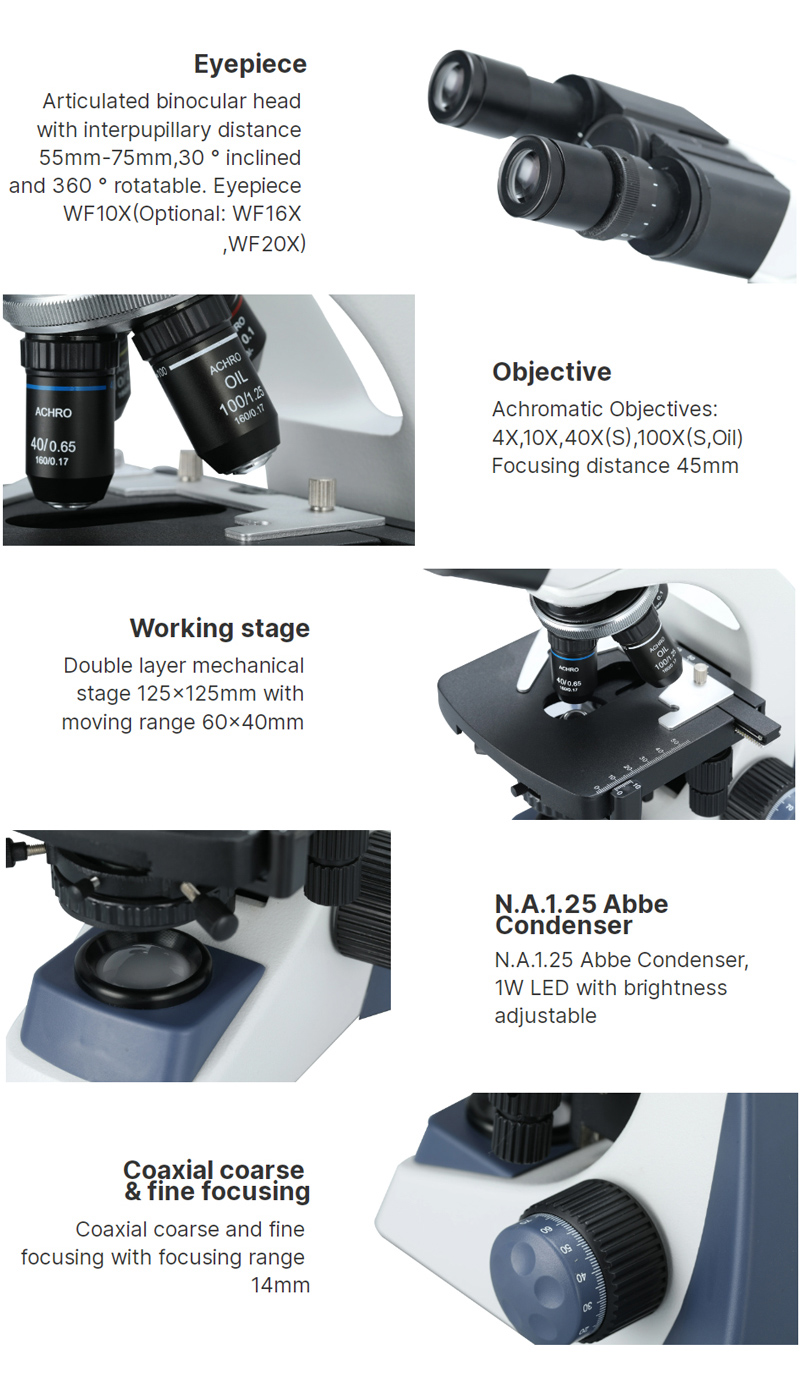

The product uses a 1W LED light source for specimen illumination. LED lighting is practical for routine microscope work because it provides a compact illumination solution and can be integrated into a relatively simple microscope structure.
For Schools and Laboratories, a stable illumination system is particularly useful because the microscope may be used repeatedly by different people. Students may have different operating habits, and laboratory technicians may need to perform observations for long periods. A practical light source helps make the observation process easier to manage.
The optical system is designed for biological observation rather than simply producing a large image. Objective quality, optical alignment, specimen preparation, illumination, and focusing all influence the final result.
We focus on stable optical assembly during production because even small mechanical or optical inconsistencies can become noticeable during microscope observation.
Focusing is something users operate constantly. A microscope can have good optical components, but if focusing is difficult or unstable, the user experience suffers.
Our biological microscope is intended to provide practical focusing control for routine specimen observation. The exact focusing structure can vary according to the microscope configuration and customer requirements.
The product is suitable for schools, universities, science classrooms, biological laboratories, research environments, medical laboratories, and routine specimen inspection.
For teaching, a microscope needs to be relatively easy to understand. For laboratory use, it needs to provide repeatable operation. These two requirements overlap more than many people expect.
The phrase low price biological microscope does not mean that every microscope should be built with the same low-cost components. It means the configuration should be matched to the actual application.
If a customer only needs routine educational observation, adding expensive features that are never used may not make practical sense. On the other hand, if the microscope will be used for demanding research work, a more advanced optical configuration may be necessary.
We therefore discuss the application before recommending a configuration.
When purchasing a 1W LED microscope, many buyers naturally ask about magnification first. We understand why. It is easy to compare numbers such as 40x, 100x, or higher magnification values.
But we recommend looking at several factors together.
| Optical Factor | What It Means | Why It Matters |
|---|---|---|
| Magnification | How large the specimen appears | Helps users observe small structures |
| Numerical Aperture | Light-gathering and resolving ability of the objective | Strongly influences image detail and brightness |
| Illumination | How the specimen is lit | Suitable illumination helps produce a usable image |
| Field of View | Area visible through the optical system | Affects how much of the specimen can be seen at one time |
| Focusing | Adjustment of image sharpness | Allows the user to bring specimen details into focus |
Source: Nikon MicroscopyU and ZEISS microscopy educational resources.
For example, field of view changes with objective magnification and eyepiece field number. Nikon explains that the specimen-plane field of view can be calculated from the field number divided by objective magnification.
This matters in practical observation. At lower magnification, a user can often see a larger area of a specimen. At higher magnification, the visible area becomes smaller, but specific details can be examined more closely.
So if a biology teacher wants students to observe the overall structure of a prepared specimen, a wider field can be useful. If a laboratory technician needs to examine a small structure, higher magnification and suitable resolution may become more important.
Numerical aperture is often abbreviated as NA. We do not expect every microscope user to calculate NA, but buyers should understand the basic idea.
A higher NA generally allows the objective to collect more light and resolve finer detail. However, optical design always involves trade-offs. ZEISS notes that higher NA can improve resolution while also bringing changes such as shorter working distance and greater sensitivity to optical conditions.
The table below gives examples from Nikon's microscopy reference material. These are reference values for different objective types, not specifications of our product.
| Objective Magnification | Plan Achromat NA | Plan Achromat Resolution (µm) | Plan Fluorite NA | Plan Fluorite Resolution (µm) |
|---|---|---|---|---|
| 4x | 0.10 | 2.75 | 0.13 | 2.12 |
| 10x | 0.25 | 1.10 | 0.30 | 0.92 |
| 20x | 0.40 | 0.69 | 0.50 | 0.55 |
| 40x | 0.65 | 0.42 | 0.75 | 0.37 |
| 60x | 0.75 | 0.37 | 0.85 | 0.32 |
| 100x | 1.25 | 0.22 | 1.30 | 0.21 |
Source: Nikon MicroscopyU, “Resolution.”
Again, these figures should be used for understanding optical principles, not as promised performance specifications for the 1W LED Light Biological Microscope. Actual performance depends on the selected configuration and specimen.
We supply biological microscope solutions for a range of applications. The common point is that users need practical optical observation without making the equipment unnecessarily complicated.
Biology education is one of the most natural applications. Students can use a biological microscope to understand cells, plant tissues, microorganisms, and prepared slides instead of learning only from diagrams in a textbook.
For teaching laboratories, ease of operation is important. The microscope may be handled by many students during the same lesson, so a straightforward structure can be more useful than a complicated instrument with functions that students never use.
University biology, medical, agricultural, environmental, and life-science courses often require students to perform basic microscopic observation.
A 1W LED Light Biological Microscope for laboratory education can be used for routine teaching tasks where the objective is to help students understand specimen structure and basic microscopy methods.
Biological research covers a very wide range of requirements. Some projects need advanced fluorescence, imaging, automated stages, digital analysis, or other specialized systems. Others begin with conventional bright-field observation.
Our biological microscope can serve routine observation needs, while more specialized applications should be matched with the appropriate optical and imaging configuration.
Microscopes are also used in medical and laboratory environments for specimen observation. The specific application determines the required optical configuration, specimen preparation method, and operating procedure.
For professional diagnostic applications, customers should select equipment according to the applicable laboratory standards and intended diagnostic workflow. Our role is to provide the microscope configuration based on the customer's stated requirements rather than make unsupported claims about medical diagnosis.
Some customers do not work in a traditional research laboratory. They simply need a microscope to inspect biological or educational specimens regularly.
For these users, a practical LED biological microscope can offer a reasonable balance between illumination, optical observation, mechanical operation, and purchase cost.
| Application | Typical Observation Goal | Important Considerations |
|---|---|---|
| School Biology | Basic cells and tissues | Easy operation, practical illumination, durability |
| University Teaching | Prepared biological specimens | Optical clarity, focusing, repeatable operation |
| Research Laboratory | Detailed specimen observation | Objective configuration, NA, specimen preparation |
| Medical Laboratory | Routine specimen examination | Application-specific configuration and procedures |
| Routine Inspection | General sample observation | Cost, maintenance, optical performance |
This application table is a practical purchasing guide rather than a clinical or regulatory specification. The actual microscope configuration should always be confirmed according to the customer's samples and working conditions.
A microscope may look simple from the outside, but there are many small steps behind a stable optical instrument. At Ningbo Huaguang Precision Instrument Co., Ltd., we are involved in the production of educational microscopes, Industrial Inspection microscopes, professional Jewelry Inspection microscopes, optical components, and precision injection molding.
Our manufacturing approach is based on controlled assembly and inspection rather than simply putting components together and sending the product out.
Optical components need to match the intended microscope configuration. The objective, eyepiece, illumination system, and other optical elements must work together.
We pay attention to the condition and assembly of optical components because dust, incorrect positioning, contamination, or poor alignment can affect observation quality.
The microscope body and focusing mechanism need to work smoothly. During assembly, we check the mechanical structure and focusing function to make sure the instrument operates properly.
For a Microscope Used in a school or laboratory, this is not a minor issue. Users may focus and reposition the microscope hundreds of times during its service life. A practical mechanical structure makes daily operation much easier.
For the 1W LED Light Biological Microscope, the illumination system is checked as part of the overall product inspection. The objective is not simply to confirm that the LED turns on. The complete illumination path needs to be considered together with the optical system and specimen observation process.
Before shipment, the microscope should undergo optical performance checking. This helps identify problems that may not be visible during a basic mechanical inspection.
We also pay attention to focusing and image observation because a microscope is ultimately a visual instrument. A product can look perfect externally while still having an optical or assembly issue that becomes obvious when a specimen is viewed.
Final inspection includes checking the appearance, assembly condition, accessories, and agreed configuration. For export orders, the final package is prepared according to the destination and customer's requirements.
This process gives us a practical quality-control chain:
Component preparation
Mechanical assembly
Optical assembly
LED illumination inspection
Focusing and mechanical function testing
Optical performance checking
Appearance inspection
Accessory and configuration confirmation
Final packaging
We are located in Haishu District, Ningbo, where transportation is convenient and the manufacturing environment supports both domestic and international business.
Ningbo Huaguang Precision Instrument Co., Ltd. mainly produces educational microscopes, industrial inspection microscopes, professional jewelry inspection microscopes, optical components, and precision injection molding products. This gives us experience across several related optical and precision-manufacturing fields.
Our products have been exported to more than 20 countries and regions, including America, Brazil, Germany, the Netherlands, and Japan. For an international customer, this export experience matters because an order is not finished when the microscope leaves the assembly line. Packaging, documentation, transportation, communication, and after-sales service all affect the customer's experience.
Our company has been certified to the ISO9001 quality management system. Our products have also been certified to CE and RoHS according to the applicable product requirements.
We see certification as part of a larger quality process, not as a replacement for product inspection. A certificate alone does not tell a customer whether a particular microscope is correctly assembled. That is why we combine management-system requirements with product-level inspection.
Our product range covers educational and industrial optical instruments. This means we understand that different customers need different microscope configurations.
A school may care about simple operation and purchase cost. A research laboratory may care more about objective performance and optical configuration. An industrial customer may need a microscope designed around a particular inspection task.
We do not believe one configuration should be pushed onto every customer.
For customized orders, the production cycle depends on the model, quantity, configuration, component availability, and other order details. Standard products can generally be arranged more quickly than products requiring special configuration.
Before confirming an order, we recommend discussing the specimen type, observation purpose, expected magnification, working environment, quantity, packaging requirements, and destination.
Our company credo is: “Nothing is perfect only better and better.”
For us, this means continuing to improve product design, manufacturing control, product quality, and after-sales service rather than assuming that a product is finished simply because it has been produced.
The production cycle depends on the microscope model, order quantity, configuration, and component availability. Standard configurations are normally easier to arrange than customized models.
For a specific order, we confirm the production schedule after the model, quantity, configuration, and other requirements have been discussed.
Before shipment, the microscope should undergo assembly inspection, optical performance checking, focusing and mechanical function testing, and appearance inspection.
We also confirm that the agreed configuration, accessories, documentation, and applicable certification or inspection documents are included with the order.
Payment terms can be arranged according to the order agreement. A common arrangement for customized or export orders is a deposit followed by the balance before shipment. The exact payment terms should be confirmed in the commercial agreement before production begins.
Microscopes are precision instruments, so packaging cannot be treated as an afterthought.
Each microscope is normally protected with inner cushioning and dust-proof materials and placed in an individual box. The individual package is then placed into reinforced export cartons or other suitable outer packaging according to the product and transportation requirements.
The purpose is simple: reduce movement, impact, dust exposure, and other risks during handling and transportation.
Yes. Transportation can be arranged through air freight, sea freight, express delivery, or another suitable logistics method depending on the destination, order size, delivery requirements, and customer preference.
For small urgent orders, express or air transportation may be considered. For larger commercial orders, sea transportation can often be more practical. The final logistics method should be selected according to the actual order.
Yes. A biological microscope with LED illumination can be suitable for school and university teaching, especially when the main purpose is observing cells, tissues, microorganisms, and prepared specimens.
The exact suitability depends on the microscope configuration and the level of biological observation required.
No. The 1W LED specification describes the power of the LED light source. It should not be interpreted as a direct measurement of microscope resolution.
Resolution depends on the optical system, objective numerical aperture, illumination wavelength, specimen properties, alignment, and other factors. Nikon and ZEISS both explain that numerical aperture is a key factor in optical resolution.
It depends on what “professional laboratory” means in the specific application. A laboratory performing routine educational or basic specimen observation may not need the same configuration as a laboratory conducting advanced microscopy research.
We recommend starting with the specimen and observation task. If the application requires specialized fluorescence, advanced imaging, high-end digital analysis, or other advanced functions, the microscope should be configured accordingly rather than selected only according to price.
We suggest starting with five questions:
What type of specimen will you observe?
Is the specimen transparent, stained, or opaque?
What level of detail do you need to see?
How often will the microscope be used?
Is the microscope intended for education, routine laboratory work, research, or inspection?
After these questions are answered, the appropriate objective, eyepiece, illumination, focusing structure, mechanical configuration, and accessories can be discussed.
Our 1W LED Light Biological Microscope with Low Price is built for a straightforward purpose: to provide practical optical observation for biological specimens without making the product unnecessarily complicated.
It combines a 1W LED illumination system with a biological microscope configuration designed for observing cells, tissues, microorganisms, prepared slides, and other biological samples. Its potential applications cover schools, universities, teaching laboratories, research environments, medical laboratories, and routine specimen inspection.
At the same time, we believe buyers should look beyond the words “high magnification” or “low price.” A useful microscope is a complete system. Optical quality, numerical aperture, illumination, field of view, focusing, mechanical stability, specimen preparation, and operator experience all contribute to the final observation result.
For customers comparing a 1W LED microscope, LED Light Biological Microscope, or low price biological microscope, we are happy to discuss the actual application before recommending a configuration. Tell us what you need to observe, how the microscope will be used, how many units you need, and where the products will be delivered.
We can then work from the application rather than simply from a product name.
At Ningbo Huaguang Precision Instrument Co., Ltd., our goal is not only to manufacture an optical instrument. We want to build a microscope that makes sense for the customer's real working environment, with stable product quality, practical design, suitable packaging, and dependable after-sales support.
“Nothing is perfect only better and better.” This remains the principle behind our continuous improvement.
