1. What Is a 0.7X~4.5X Gemological Stereo Microscope?

The 0.7X~4.5X Gemological Stereo Microscope is a zoom stereo microscope designed for close observation of small objects. The 0.7X~4.5X figure describes a zoom range in the optical system, rather than automatically meaning that the microscope provides only 0.7X to 4.5X total magnification at the user's eyes.

This distinction is important. Total magnification depends on the combination of the zoom body, eyepieces, objective, and other optical components. For example, a stereo microscope can use a 0.7X~4.5X zoom body together with different eyepieces or auxiliary objectives to create different total magnification ranges.

I always recommend that buyers confirm the complete optical configuration rather than comparing one number with another microscope's number. A microscope with a wider zoom range may offer greater flexibility, but that does not automatically mean it is the right instrument for every application.

For gemological inspection, the operator may want to start at a lower setting to see the whole stone or jewelry piece, then increase magnification to examine an inclusion, facet, edge, setting, scratch, or workmanship detail. For electronics, the same basic workflow can be useful: begin with a larger area, locate the problem, and then zoom in on the specific component or connection.

Why stereo viewing is useful

A stereo microscope uses two optical paths to create a three-dimensional view of a solid specimen. This is one of the main reasons stereo microscopes are widely used for electronics, metals, assembly, quality control, gemology, and other inspection tasks. Evident describes stereo microscopes as systems that provide three-dimensional views of solid specimens at relatively low magnification and specifically lists electronics, metals, quality control, assembly, and gemology among their applications. :contentReference[oaicite:0]{index=0}

For me, the practical benefit is easy to understand. When I look at a raised component, a gemstone setting, a wire, a machined edge, or a small mechanical part, I want to understand its shape rather than simply see a larger flat picture.

What the 0.7X~4.5X range means in practice

A broad zoom range gives the operator room to move between general observation and closer inspection. At the lower end, the user can see a larger area. At the higher end, the image becomes more focused on a smaller region.

There is always a trade-off. In general, increasing magnification reduces the field of view and can reduce working distance and depth of field, depending on the optical configuration. Evident's stereo microscope documentation also illustrates this relationship across different objective and zoom configurations. :contentReference[oaicite:1]{index=1}

2. How the Microscope Works During Gem and Electronics Inspection

At first glance, a stereo microscope looks like a fairly simple piece of equipment. In actual use, however, several optical and mechanical parts need to work together. Light from the sample enters the objective system, the optical paths magnify the image, and the binocular viewing system delivers separate views to the two eyes.

The brain then combines those views and produces a stronger sense of depth. This is what makes stereo observation particularly useful for objects that have height, shape, edges, holes, curves, or layered structures.

Step 1: Light reaches the sample

Good inspection starts with good lighting. A gemstone, polished metal component, PCB, or dark plastic part can look very different depending on how light reaches its surface.

For gemological work, the direction and intensity of illumination can influence how clearly the operator sees facets, surface marks, inclusions, and settings. In electronics inspection, light helps reveal solder joints, component edges, printed features, connectors, and contamination.

Step 2: The optical system collects the image

The objective collects light from the sample and creates the magnified optical image. The zoom system allows the operator to change the optical magnification smoothly within the available range.

This is where the 0.7X~4.5X configuration becomes useful. Instead of having only one fixed viewing level, the operator can move through the zoom range to match the task.

Step 3: The binocular system creates depth

The two optical paths provide slightly different views of the object. When the operator looks through both eyepieces, the brain combines those views into a three-dimensional impression.

This is particularly useful when the object has a complex shape. A jeweler can inspect the relationship between a stone and its setting. An electronics technician can judge the height and position of a solder joint or component. A mechanical inspector can examine an edge, hole, groove, or surface feature.

Step 4: The operator adjusts focus

Once the desired magnification is selected, focusing brings the required area into a sharp view. Stable focusing is important because the operator may move repeatedly between different areas of the sample.

I pay attention to this part because a microscope is a working tool. If focusing feels unstable or unnecessarily difficult, the user notices it very quickly during a long inspection session.

Step 5: The operator works with the sample

This is where a stereo microscope differs from many simple viewing systems. The operator may need to manipulate the sample while observing it. Jewelry tools, tweezers, soldering tools, repair instruments, or small assembly tools may be used under the microscope.

That is why working distance is not just a number on a specification sheet. It affects what the operator can physically do while looking through the microscope.

3. Main Features of Our Gemological Stereo Microscope for Electronics

When I describe this microscope to a customer, I prefer to talk about useful functions rather than simply list technical words. A Microscope Used every day needs to be easy to understand, stable on the workbench, comfortable to look through, and suitable for the actual sample.

Wide 0.7X~4.5X zoom range

The 0.7X~4.5X optical range gives the operator flexibility to move from broader observation to more detailed inspection. This is helpful when the sample size changes from one job to another.

For gemology, the operator may first inspect the complete stone and then move toward a particular area. For electronics, the user may first look at a section of a circuit board and then zoom in on a solder connection or component.

Clear three-dimensional observation

The stereo optical arrangement is designed for direct three-dimensional viewing. This makes the microscope suitable for objects where shape and depth matter.

Evident notes that stereo microscopes are used for inspection and assembly partly because they combine depth perception, working space, and depth of field. :contentReference[oaicite:2]{index=2}

Binocular observation

Two-eye viewing can be more comfortable for many users during repeated inspection. The binocular head also supports the stereoscopic viewing experience that makes this type of microscope different from a basic monocular magnifier.

Practical focusing

Stable focusing allows the operator to move from one detail to another without unnecessary adjustment. This matters especially when the microscope is used for quality control, sorting, assembly, or repair.

Useful working space

For electronics inspection, the operator may need to hold a PCB, use tweezers, or perform rework. For jewelry, the user may need to manipulate a stone or setting. Sufficient working space helps make these tasks more practical.

Suitable for different workstations

A stereo microscope can be used in a factory inspection station, jewelry workshop, laboratory, classroom, repair bench, or research environment. The final configuration should be selected according to the workstation and sample rather than simply copying another user's setup.

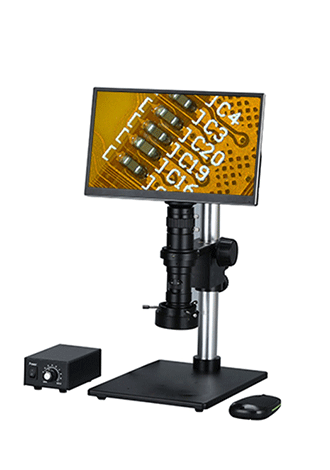

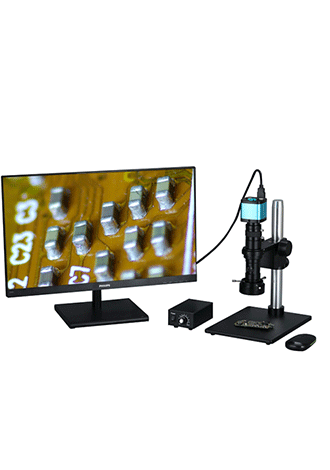

Optional digital observation considerations

Some customers want direct binocular observation only. Others want to connect a camera for documentation or monitor-based inspection. Stereo microscope systems can be configured with imaging accessories depending on the optical interface and intended application.

If image documentation is important, I recommend discussing the camera and adapter requirements before ordering. The optical path, sensor size, field of view, and mounting method all affect the final image.

4. Gemological, Electronics, Jewelry, and Industrial Applications

The interesting thing about this microscope is that gemology and electronics may sound like completely different industries, but their inspection requirements overlap more than many people expect. Both involve small objects, fine details, hands-on work, and the need to understand three-dimensional structures.

Gemological inspection

Gemology is one of the most natural applications for a stereo microscope. The operator may need to inspect a gemstone's surface, facets, edges, inclusions, setting, or workmanship.

A zoom stereo microscope allows the user to start with a general view and then move toward a specific detail. This is useful when the sample changes frequently because the operator does not need to use one fixed magnification for every stone.

Professional gemological inspection also depends heavily on lighting. Different surface conditions can reflect light in different ways, so the illumination configuration should be selected according to the inspection goal.

Jewelry manufacturing and repair

Jewelry work often requires close observation while the operator is also manipulating a physical object. Prongs, settings, engraving, polished surfaces, edges, and small assembly points can all benefit from magnified stereoscopic viewing.

The working distance becomes particularly important here. The operator needs enough room to position the jewelry and use appropriate tools without constantly touching the objective.

Electronics inspection

Electronics is another major application. A stereo microscope can be used to inspect printed circuit boards, solder joints, connectors, wires, small components, and assembly details.

For rework, the combination of magnification and working space is especially useful. The technician can look at the solder area while using a tool under the microscope.

Evident specifically describes stereo microscopes as useful for electronics inspection and rework, including inspection of solder joints, connectors, traces, and small components. :contentReference[oaicite:3]{index=3}

Precision mechanical parts

Small machined parts often contain grooves, holes, edges, threads, burrs, and surface marks that are difficult to inspect quickly with the naked eye. Stereo viewing gives the operator a better sense of the physical form.

Laboratory work

Laboratories can use stereo microscopes for sample preparation, sorting, surface inspection, and observation of larger solid specimens. The exact suitability depends on the sample and required resolution.

Education

For students, a stereo microscope can make small objects easier to understand because the viewing experience has a three-dimensional quality. It can be used for demonstrations involving insects, plants, materials, mechanical parts, and other solid specimens.

Repair and quality control

Repair technicians and QC inspectors often need to find small defects without destroying the sample. A stereo microscope is well suited to this type of visual inspection because the sample can remain in a relatively natural state while being examined.

5. Technical Advantages I Consider Before Choosing the Configuration

There is no single microscope configuration that is perfect for every user. I would rather help a customer choose a suitable system than tell everyone to buy the same model.

Magnification should match the smallest useful detail

More magnification is not always better. If the field of view becomes too small, the operator may spend more time moving the sample around. If the depth of field becomes too shallow, only a small part of an uneven sample may remain sharply focused.

The better question is: what is the smallest detail that needs to be inspected, and how large is the surrounding area? Once I know that, I can better understand the required optical range.

Working distance affects hands-on work

If the operator only observes a sample, working distance may not be the first concern. If the operator must manipulate the sample, repair it, solder it, or adjust a setting, working distance becomes much more important.

This is one reason professional stereo microscopes are common in assembly and inspection work. The user can observe the sample while keeping physical access to it.

Field of view affects inspection speed

Imagine inspecting a large circuit board. Starting at a very high magnification can make it difficult to understand where you are. A lower setting allows the operator to locate the general area first. The user can then zoom toward the defect.

This “find first, inspect second” workflow is one of the practical benefits of a zoom stereo microscope.

Optical quality matters more than a large number

A high magnification number is not useful if the image becomes unclear. Good inspection depends on the balance between magnification, resolution, contrast, field of view, working distance, and illumination.

For example, Evident's SZX16 combines a wide zoom ratio with high-resolution optical performance for research, materials science, quality control, and failure analysis. Its published configuration demonstrates why zoom ratio and total magnification need to be considered together rather than as isolated numbers. :contentReference[oaicite:4]{index=4}

Illumination changes the inspection result

A microscope cannot show details that are poorly illuminated. Shiny jewelry, reflective metal, dark electronic components, and recessed structures can all require different lighting approaches.

When discussing a custom order, I therefore ask about the sample surface, color, reflectivity, size, and inspection method. This helps us determine whether the standard configuration is sufficient or whether additional lighting accessories should be considered.

Mechanical stability supports optical stability

If the microscope shakes when the operator touches the focusing knob, even good optics become harder to use. The stand, focusing mechanism, joints, and mounting points all contribute to the working experience.

This is why our final inspection includes both optical and mechanical checks rather than treating the optical system as the only important part.

6. How We Manufacture, Inspect, Pack, and Deliver the Microscope

For an overseas B2B customer, buying a microscope is not just about choosing a product page. The customer needs to know what happens after the order is placed.

Our production cycle depends on the microscope model, optical configuration, accessories, order quantity, and customization requirements. Standard configurations can usually be arranged more quickly, while customized orders may need additional production time.

Configuration confirmation

Before production, we confirm the microscope model, optical arrangement, accessories, quantity, and any customization requirements. If the microscope will be used for gemology or electronics, we also need to understand the inspection target.

This step helps prevent a common B2B problem: receiving a technically correct microscope that is not well matched to the actual job.

Optical component assembly

Optical components are assembled according to the specified configuration. Clean handling is important because dust and contamination can affect image quality.

Mechanical assembly

The optical head, focusing system, stand, and related mechanical components are assembled and adjusted. We pay attention to focusing movement and overall assembly because these factors directly affect the operator's daily experience.

Optical and functional inspection

Before delivery, we check optical performance, focusing, mechanical operation, accessories, appearance, and overall assembly quality.

For customized orders, the agreed configuration becomes particularly important. The final microscope needs to match what was confirmed with the customer.

Quality management

Ningbo Huaguang Precision Instrument Co., Ltd. has been certified to an ISO 9001 quality management system. ISO 9001 provides a framework for quality management processes, customer requirements, evaluation, and continual improvement. :contentReference[oaicite:5]{index=5}

I do not view a quality certificate as a replacement for product inspection. For us, the useful part is having controlled processes while still checking the actual microscope before shipment.

CE and RoHS considerations

Our products have been certified to CE and RoHS according to applicable requirements. Buyers should always confirm the exact product model, certification scope, declaration, and destination-market requirements rather than assuming that every microscope configuration has identical compliance documentation.

The European Commission explains that CE marking indicates that a product has been assessed against applicable EU requirements, while the manufacturer is responsible for the relevant conformity assessment and technical documentation. CE marking is not a general quality award and is only required where applicable EU rules mandate it. :contentReference[oaicite:6]{index=6}

For RoHS, the European Commission states that the directive restricts specified hazardous substances in electrical and electronic equipment, with the aim of reducing risks to human health and the environment. :contentReference[oaicite:7]{index=7}

Export packaging

After inspection, we protect the microscope with cushioning and dust-proof materials. Each microscope is packed in an individual box and then placed into reinforced export cartons.

Microscopes contain optical and mechanical parts that should not be treated like ordinary metal goods. Good packing reduces the risk of impact, dust, and movement during international transportation.

Transportation

Depending on the destination, quantity, and delivery requirements, we can arrange air freight, sea freight, express delivery, or another suitable logistics method.

Payment follows the agreed order terms. A common arrangement is a deposit followed by the balance before shipment, but the exact terms depend on the confirmed order.

7. Why Choose Ningbo Huaguang for a Gemological Stereo Microscope?

When I work with an overseas buyer, I know the buyer is not only purchasing a microscope. They are also choosing a supplier who needs to understand specifications, production schedules, export packing, documents, and after-sales communication.

Ningbo Huaguang Precision Instrument Co., Ltd. is located in Haishu District, Ningbo. Our main business covers educational microscopes, industrial inspection microscopes, professional jewelry inspection microscopes, optical components, and precision injection molding.

Our experience across different Microscope Applications helps us understand why two customers asking for a “stereo microscope” may actually need very different products.

Experience across multiple applications

An educational microscope, electronics inspection microscope, and Jewelry Microscope may share basic optical principles, but the working environment is different. We consider the application when discussing configuration.

For electronics, I pay more attention to working space, inspection of small components, focusing, and possible imaging requirements. For jewelry, optical clarity, depth perception, lighting, and sample handling can become more important.

International export experience

Our products are exported to more than 20 countries and regions, including America, Brazil, Germany, the Netherlands, and Japan. International orders require more than product assembly. Packaging, documentation, shipping arrangements, and communication all need to be handled clearly.

Product quality and documentation

Our company has ISO 9001 quality management system certification. Our products have also been certified to CE and RoHS according to applicable requirements. For each order, the exact documents should be confirmed according to the microscope configuration and destination market.

Customization support

We can discuss customized requirements involving the microscope model, optical configuration, accessories, quantity, and application. The more information a buyer can provide at the beginning, the easier it is for us to propose a practical configuration.

After-sales communication

Our work does not end when the carton leaves the factory. If a customer has questions about operation, configuration, accessories, or product use, clear communication is still important.

Our company credo is “Nothing is perfect only better and better.” I see this as a practical working attitude. There is always something we can improve, whether it is product design, production consistency, packaging, customer communication, or service.

8. Frequently Asked Questions About the 0.7X~4.5X Gemological Stereo Microscope for Electronics

What does 0.7X~4.5X mean?

It refers to the zoom range of the relevant optical system. It does not automatically mean that the user's total visual magnification is exactly 0.7X to 4.5X. Total magnification depends on the complete optical configuration, including eyepieces and objectives.

Is this microscope suitable for gemstone inspection?

Yes. A stereo microscope is well suited to observing three-dimensional solid objects such as gemstones and jewelry. The 0.7X~4.5X zoom range can provide flexibility for moving between general observation and closer inspection, depending on the complete configuration.

Can I use it for electronics and PCB inspection?

Yes. Stereo microscopes are widely used for electronics inspection and rework. They can help users inspect solder joints, connectors, wires, components, and PCB details while leaving working space for hands-on operations. Evident specifically identifies electronics inspection and rework as Stereo Microscope Applications. :contentReference[oaicite:8]{index=8}

Is a 0.7X~4.5X zoom range enough for electronics?

It depends on the actual inspection target. For general PCB inspection, assembly, soldering, and small-component work, the range may be useful. If the customer needs extremely fine defect analysis, the complete optical system and required resolution should be reviewed before ordering.

Can I use this microscope for jewelry repair?

Yes. Jewelry repair can benefit from stereoscopic observation because the operator can inspect small three-dimensional structures while using tools. Working distance and lighting should be considered when selecting the final configuration.

Does higher magnification always mean better inspection?

No. Higher magnification can reveal smaller details, but it can also reduce the field of view and depth of field. The best configuration is the one that provides enough detail while keeping the working area practical.

Can the microscope be connected to a camera?

Depending on the selected microscope configuration, imaging accessories may be available. If digital documentation is required, we recommend confirming the camera interface, adapter, sensor requirements, and intended field of view before production.

How should I choose a microscope for gemology?

I recommend telling us the type and size of gemstones, the smallest detail you need to inspect, preferred working distance, lighting conditions, and whether photographs are required. This information is more useful than simply asking for the highest available magnification.

How should I choose a microscope for electronics?

Tell us the PCB or component size, smallest detail, whether soldering or rework will be performed under the microscope, required working distance, expected daily usage, and whether camera imaging is required. We can then discuss the optical and mechanical configuration.

What is the production cycle?

The production cycle depends on the microscope model, optical configuration, accessories, order quantity, and customization requirements. Standard models can usually be arranged faster, while customized orders may require additional production time.

What do you inspect before delivery?

Before shipment, we check optical performance, focusing, mechanical operation, accessories, appearance, and overall assembly quality. We also confirm the agreed configuration and applicable documentation.

How do you pack microscopes for international shipping?

We use cushioning and dust-proof materials, individual product boxes, and reinforced export cartons. The goal is to reduce movement and impact risks during international transportation.

Can you provide OEM or customized microscope solutions?

We can discuss customized requirements based on the microscope model, optical configuration, accessories, quantity, and application. The exact customization scope should be confirmed before production.

Do you provide CE and RoHS documentation?

Our products have been certified to CE and RoHS according to applicable requirements. The exact documents and compliance scope should be confirmed for the specific product configuration and destination market.

Conclusion: Choosing the Right Stereo Microscope Starts With the Work

When I look at a 0.7X~4.5X Gemological Stereo Microscope for Electronics, I see a flexible inspection tool rather than simply another microscope with a particular magnification number.

The 0.7X~4.5X zoom range can help users move between broader observation and closer inspection. Binocular stereo viewing provides a three-dimensional perspective. Stable focusing supports repeated inspection. Suitable working distance leaves room for practical manipulation. Good illumination helps reveal surface details. And a properly matched optical configuration brings all these parts together.

For gemology, the microscope can support examination of gemstones, settings, facets, inclusions, edges, and jewelry workmanship. For electronics, it can support PCB inspection, soldering, component checking, assembly, repair, and quality control. The same basic optical principle can also be useful in precision machinery, laboratories, education, and other inspection environments.

At Ningbo Huaguang Precision Instrument Co., Ltd., we prefer to start with the application and then work backward toward the microscope configuration. That approach is more practical than simply selecting the highest magnification available.

If you are looking for a 0.7X~4.5X gemological stereo microscope, a stereo microscope for electronics inspection, a professional jewelry inspection microscope, or a flexible microscope for precision inspection, we can discuss the sample, working conditions, optical requirements, accessories, production schedule, and delivery requirements before confirming the order.

Our goal is straightforward: provide stable optical equipment, communicate clearly, inspect carefully, pack securely, and keep improving with every order.
